- Model NO.: ZW12-12KV
- Operation: Manual Type
- Arc-extinguishing Medium: Vacuum
- Structure: Moulded Case Circuit Breaker
- Type: Circuit Breaker
- Certification: ISO9001-2000, Cnas,Cnal
- Rated Current: 630/400/200
- Specification: 12KV
- HS Code: 8535210000
- Breaking Capacity: Low Voltage Circuit Breakers
- Speed: High-Speed Circuit Breaker
- Installation: Fixed
- Poles Number: 1
- Function: Circuit-Breaker Failure Protection
- Rated Voltage: 12
- Trademark: ZHON
- Origin: China

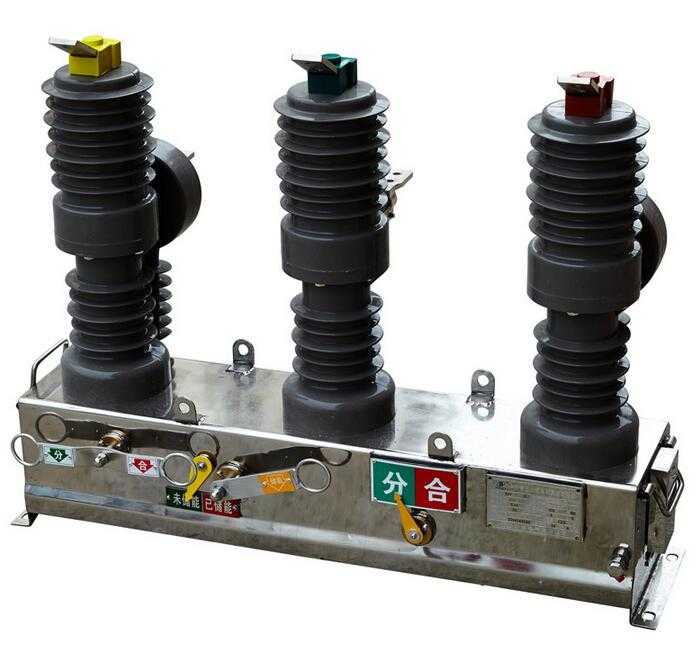

ZW32-12 series outdoor high-voltage vacuum circuit breaker is used in a three-phase A. C. 50Hz, voltage of 10~12kV electric system, suitable for breaking and making load current, overload current and short-circuit current.
|
Item
|
Unit
|
Parameter
|
|
Rated Voltage
|
kV
|
12
|
|
Rated Current
|
A
|
630/400/200
|
|
Rated Short-circuit Breaking Current
|
kA
|
20/16/12.5
|
|
Rated Short-circuit Making Current (Peak)
|
kA
|
50
|
|
Rated Peak Withstand Current
|
kA
|
50
|
|
Rated Short-time Withstand Current
|
kA
|
20
|
|
Rated Short-circuit Duration
|
S
|
4
|
|
Rated Insulation Level
|
Lightning Impulse Withstand Voltage (Peak)
|
kV
|
75
|
|
1min Power Frequency
Withstand Voltage
|
Dry Test
|
kV
|
42
|
|
Wet Test
|
kV
|
34
|
|
Rated Operating Sequence
|
|
O-0.3s-C O-180s-CO
|
|
Rated Short-circuit Current Breaking Times
|
times
|
30
|
|
Mechanical Life
|
times
|
10000
|
|
Opening Time
(Shunt Trip)
|
Highest Operating Voltage
|
ms
|
15~50
|
|
Rated Operating Voltage
|
ms
|
15~50
|
|
Lowest Operating Voltage
|
ms
|
30~60
|
|
Closing Time
|
ms
|
25~50
|
|
Full-break time
|
ms
|
≤ 100
|
|
Arc Time
|
ms
|
≤ 20
|
|
Rated Input Power of Energy Storing Motor
|
W
|
40
|
|
Rated Operating Voltage and Rated Voltage of Auxiliary Circuit
|
V
|
DC220, 110, 24
|
|
V
|
AC220, 110, 24
|
|
Energy Storing Time Under Rated Voltage
|
s
|
≤ 10
|
|
Over-current Release
|
Rated Current
|
A
|
5
|
|
Accuracy of Release Current
|
%
|
± 10
|
