Quick Details
Description

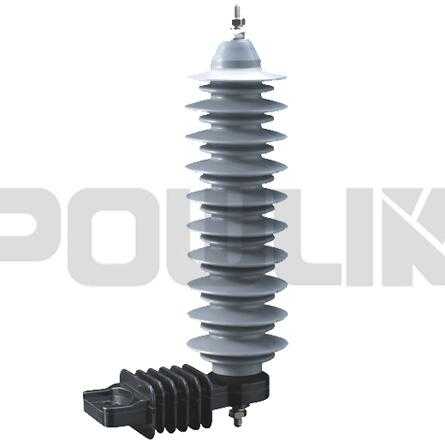

- Model NO.: YH10W-33
- Structure: Zinc Oxide Arrester
- Application: Power Plants
- Operation Voltage: High Voltage
- Certification: ISO9001, SGS, CCC
- Rated Voltage: 33kv
- High Current Impulse Withstand: 65/100
- Trademark: POWLIK
- Origin: China
- Type: Power Source Arrester
- Installation: Parallel Arrester
- Size: Meidum
- Material: Polymer
- Brand: Powlik
- Mcov: 27.5
- Model: Can Be Made to Order
- Specification: YH10W-33
- HS Code: 8535400000
1.Main principle
· Zinc oxide lighting arrester is one kind most world advanced over-voltage protector at present, due to its core components of resistanceapply-
Ing Zno and other metal oxide to make of, comparing with traditional carborundum arrester, it improves greatly V-Acharacteristics of resistance, increases the getting trough ability of resistance, thereby it brings fundamental change to features of arrester.
2.Under normal working voltage, the current passing arrseter onlyu A class, when bearing over voltage, the escellentnon-linear V-Afeatures of arrester would make effect, the current passing through the arrester increase high to thoudands of Ampere instant, the arrester is under getting through state, to release over-voltage energy, therefore it effectve limits the admage to power transmission equiqments due to over voltage.
3. Applicafion and feafures
· Zinc oxide lighting arrester is one kind protecting equipment preventing electric equipments in AC power system from high voctage and over-voltage operation.
|
Code No.
|
Rated Voltage
|
MCOV
|
Current impulse Residual Voltage
|
Long impulse withstand
current 2000 us
|
High current impulse
withstand
|
|
1/4μs Steep current impulse
|
8/20μs Lightning current impulse
|
30/60μs Switching
current impulse
|
|
KV(rms)
|
KV(rms)
|
KV(crest)
|
KV(crest)
|
KV(crest)
|
|
YH10W-3
|
3
|
2.55
|
11.3
|
9
|
8.9
|
150
|
250
|
65
|
100
|
|
YH10W-6
|
6
|
5.1
|
226
|
18
|
16.8
|
150
|
250
|
65
|
100
|
|
YH10W-9
|
9
|
7.65
|
33.7
|
27
|
23.8
|
150
|
250
|
65
|
100
|
|
YH10W-10
|
10
|
8.4
|
36
|
30
|
23
|
150
|
250
|
65
|
100
|
|
YH10W-11
|
11
|
9.4
|
40
|
33
|
30
|
150
|
250
|
65
|
100
|
|
YH10W-12
|
12
|
10.2
|
42.2
|
36
|
27
|
150
|
250
|
65
|
100
|
|
YH10W-15
|
15
|
12.7
|
51
|
45
|
38.5
|
150
|
250
|
65
|
100
|
|
YH10W-18
|
18
|
15.3
|
61.5
|
54
|
46.2
|
150
|
250
|
65
|
100
|
|
YH10W-21
|
21
|
17.0
|
71.8
|
63
|
54.2
|
150
|
250
|
65
|
100
|
|
YH10W-24
|
24
|
19.5
|
82
|
72
|
62
|
150
|
250
|
65
|
100
|
|
YH10W-27
|
27
|
22.0
|
92
|
81
|
69.8
|
150
|
250
|
65
|
100
|
|
YH10W-30
|
30
|
24.4
|
102
|
90
|
79
|
150
|
250
|
65
|
100
|
|
YH10W-33
|
33
|
27.5
|
112
|
99
|
86.7
|
150
|
250
|
65
|
100
|
|
YH10W-36
|
36
|
29.0
|
117
|
103
|
92.4
|
150
|
250
|
65
|
100
|
|
YH10W-39
|
39
|
31.5
|
123
|
108
|
94
|
400
|
400
|
100
|
100
|
|
YH10W-42
|
42
|
33.6
|
126
|
111
|
101
|
400
|
400
|
100
|
100
|
|
YH10W-45
|
45
|
36.5
|
128
|
119
|
102
|
400
|
400
|
100
|
100
|
|
YH10W-48
|
48
|
39
|
139
|
128
|
110
|
400
|
400
|
100
|
100
|
|
YH10W-51
|
51
|
40.8
|
151
|
135
|
115
|
400
|
400
|
100
|
100
|
|
YH10W-54
|
54
|
42
|
160
|
143
|
119
|
400
|
400
|
100
|
100
|
|
YH10W-60
|
60
|
48
|
178
|
159
|
132
|
400
|
400
|
100
|
100
|
|
YH10W-66
|
66
|
52.8
|
1*9
|
175
|
145
|
400
|
400
|
100
|
100
|
|
YH10W-69
|
69
|
55.2
|
205
|
193
|
152
|
400
|
400
|
100
|
100
|
|
YH10W-72
|
72
|
57
|
214
|
191
|
158
|
400
|
400
|
100
|
100
|
|
YH10W-75
|
75
|
60
|
223
|
199
|
165
|
400
|
400
|
100
|
100
|
|
YH10W-84
|
84
|
67.2
|
244
|
218
|
181
|
400
|
400
|
100
|
100
|
|
YH10W-90
|
90
|
70
|
249
|
222
|
184
|
400
|
600
|
100
|
100
|
|
YH10W-96
|
96
|
76
|
265
|
237
|
197
|
400
|
600
|
100
|
100
|
|
YH10W-108
|
108
|
84
|
298
|
266
|
221
|
400
|
600
|
100
|
100
|
|
YH10W-120
|
120
|
98
|
330
|
295
|
245
|
400
|
600
|
100
|
100
|
