Quick Details
Description
- Model NO.: XL21
- Structure: Protection
- Form: Partly-welded Type
- Size: 1 Uint
- Shell Material: Steel Plate
- Brand: Shanghai Electric
- Transport Package: Standard Export Package
- Origin: Shanghai
- Type: Power
- Certification: ISO9001:2000, CCC
- Operation Voltage: Low Voltage
- Application Range: High-rise Buildings
- Shell Protection Grade: IP23
- Trademark: SHANGHAI ELECTRIC
- Specification: 600*800*400
- HS Code: 85372090

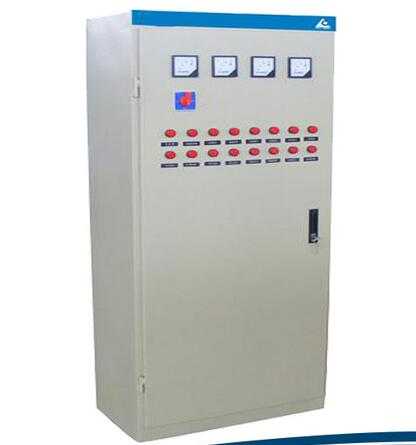

XL-21 electrical panel board distribution board
can be used in AC 500V or lower system of three-phase three-wire, three-phase four-wire, three-phase five-wire for electricity-generating and mine enterprises, also for the purpose of power, lighting, distribution. XL-21(G) type low voltage power panel has flexible distribution scheme, convenient combination, good practical performance, new structure and etc.
Technical sepcification:
|
Items
|
Unit
|
Parameter
|
|
Rated voltage
|
V
|
AC380,AC660
|
|
Rated frequence
|
HZ
|
50/60
|
|
Rated short time withstand current
|
KA
|
30 50
|
|
Rated peak withstand current
|
KA
|
63 105
|
|
Dielectric strength
|
V/1Min
|
2500
|
|
Rated insulation voltage
|
V
|
660
|
|
Protection level
|
|
IP30/IP40
|
|
Width*Depth*Heigth
|
MM
|
Customize
|
Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.
Members of goverment mechanical ministry
Key enterprises of Shanghai
We are one of the earliest manufacturer of electrical equipment in China
We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company
Our company was ISO9001/ISO14001/OHSAS18001 approval
Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.
After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch
Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.
We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
