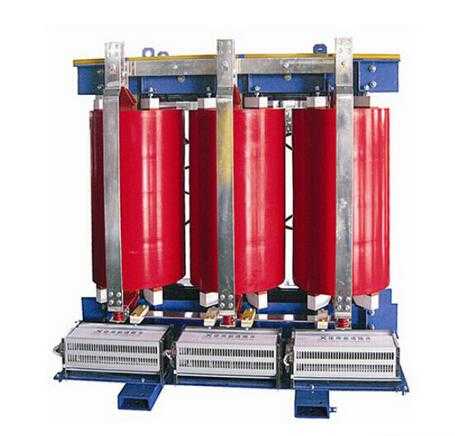

SCB Cast Resin Three Phase Distribution Dry Type Transformer
Low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system.
Quick Details
Description
- Model NO.: SCB
- Phase: Three
- Cooling Method: Dry-type Transformer
- Certification: ISO9001-2000, CCC
- Frequency Characteristics: 50-60Hz
- Brand: Shanghai Electric
- Trademark: Shanghai Electric
- Specification: CTOC type tested
- HS Code: 85042100
- Application: Power
- Core: Core-type Transformer
- Winding Type: Two-winding Transformer
- Usage: Distribution Transformer
- Shape of Core: Ring
- Item: Cast Resin Dry Type Three Phase Distribution Trans
- Transport Package: Standard Export Package
- Origin: Shanghai
Low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial building,stadiums,chemical plants,stations,aiports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements.
|
Type
|
Voltage combination
|
Vector group
|
Insulation level
|
Loss(W)
|
Imp voltage
%
|
No load current
|
Noise
(db)A
|
Dimension
(L*W*H)
mm
|
Weight
(kg)
|
|
Primary
|
Tapping range
|
Secondary
|
No Load loss
|
Full
load loss
|
|
SC(B)10-30/10
|
6
6.3
6.6
10
10.5
11
13.2
17.5
20
24
33
35
40.5
|
±2x2.5%
|
0.4 or other
|
Yyn0 or Dyn11
|
LI75AC35
LIOAC3
|
190
|
700
|
4.0
|
2.2
|
43
|
680*400*686
|
300
|
|
SC(B)10-50/10
|
270
|
990
|
2.0
|
43
|
690*400*686
|
360
|
|
SC(B)10-80/10
|
360
|
1370
|
1.8
|
43
|
730*450*796
|
500
|
|
SC(B)10-100/10
|
400
|
1570
|
1.8
|
44
|
730*500*816
|
600
|
|
SC(B)10-125/10
|
470
|
1840
|
1.6
|
44
|
780*600*950
|
700
|
|
SC(B)10-160/10
|
540
|
2120
|
1.4
|
44
|
950*650*1124
|
850
|
|
SC(B)10-200/10
|
620
|
2520
|
1.4
|
45
|
990*650*1164
|
950
|
|
SC(B)10-250/10
|
720
|
2750
|
1.4
|
45
|
1020*650*1207
|
1100
|
|
SC(B)10-315/10
|
880
|
3460
|
1.2
|
47
|
1050*750*1320
|
1250
|
|
SC(B)10-400/10
|
970
|
3980
|
1.2
|
48
|
1100*800*1450
|
1550
|
|
SC(B)10-500/10
|
1160
|
4880
|
1.2
|
48
|
1140*800*1430
|
1850
|
|
SC(B)10-630/10
|
1340
|
5870
|
1.0
|
50
|
1250*800*1500
|
1900
|
|
SC(B)10-800/10
|
1520
|
6950
|
6.0
|
1.0
|
52
|
1330*800*1540
|
2200
|
|
SC(B)10-1000/10
|
1760
|
8120
|
0.8
|
54
|
1400*960*1640
|
2750
|
|
SC(B)10-1250/10
|
2090
|
9690
|
0.8
|
54
|
1450*960*1690
|
3300
|
|
SC(B)10-1600/10
|
2450
|
11730
|
0.8
|
56
|
1560*960*1930
|
4000
|
|
SC(B)10-2000/10
|
3320
|
14450
|
0.6
|
57
|
1680*960*1930
|
4800
|
|
SC(B)10-2500/10
|
4000
|
17170
|
0.6
|
57
|
1720*1010*1950
|
5
|
