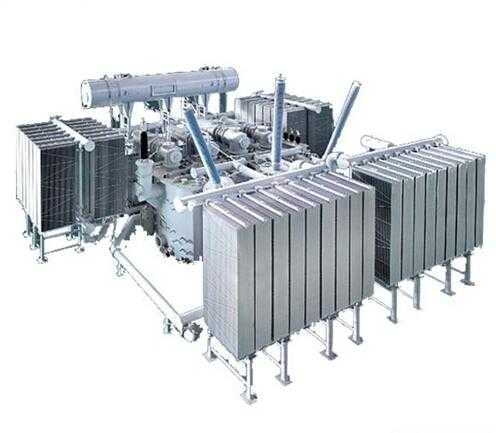

- Model NO.: TGY
- Phase: Three
- Cooling Method: Oil-immersed Type Transformer
- Certification: ISO9001-2000, CCC, Type Tested
- Frequency Characteristics: Power Frequency
- Brand: Shanghai Electric
- Transport Package: Wooden Case
- HS Code: 85043490
- Application: Power
- Core: Core-type Transformer
- Winding Type: Multi-winding Transformer
- Usage: Distribution Transformer
- Shape of Core: Ring
- Trademark: Shanghai Electric
- Origin: Shanghai
Operating environment and conditions
1 Temperature: extreme max. temperature: 45% Extreme min. temperilture: -25ºC
Meiln temperature of hottest month: 37ºC
2 Altitude: below 2000m
3 Earthquake intensity: 6
4 Pollution level: 3
5 Mean reliltive humidity: ≤78%
key technical parameters and performance indicators
1 Cilpacity on line side: 125000kVA
2 Capacity on valve side: 125000kVA
3 Line rated voltage: 220KV
4 Rated frequency: 50Hz
5 No. 01phase: three-phase
6 Qutput current of voltage variation transformer: 2*166.5A(rated translormation ratio of main transformer :191.26)
7 Stabilizing rated capacity: 30000KVA
8 Type of tap changing: 70 steps tap changing consist ofQlTC 35 steps continous coarse-tuning & fine-tuning and two steps tap changing 01off-circuit tap changer .
9 Vector group symbol: YNaO/Z,dll-d5/yO-y6
10 Voltage-regulating depth of saturable reactor :70V
11 Max control current of saturable reactor: 40A
12 Insulation level of product: U950AC395- L1325AC140/LI70AC35/AC8
13 Insulation level of neutral point: L1325AC140
14 Setting condition: semi-outdoor
Operating environment
1 Altitude:≤1000m.
2 Ambient temperature: max. temperature +40ºC.max. monthly mean temperature +30ºC.min. temperature- 10ºC.max. annual mean temperature +20ºC.
3 1nstallation environment: slope of installation site < 3° no apparent fouling and corrosion or corrosive gas.
