- Place of Origin: Jiangxi, China (Mainland)
- Brand Name: XILING
- Model Number: XGN15-12
- Type: Outdoor
- Rated Voltage: 12KV/24KV
- Rated current: 630A
- Rated frequency: 50/60 Hz
- Standard: IEC29833365129694420,56529932, GB3804390611022
- Protection level: IP55
- Color: Accept Customize
General

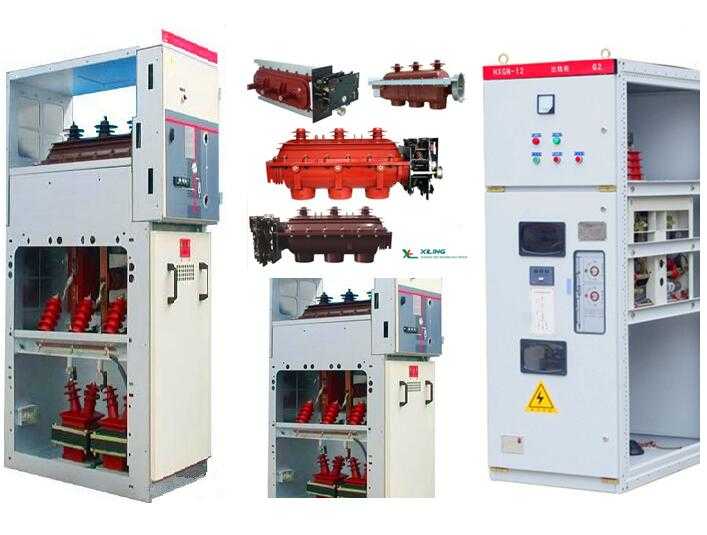

SF6 ring main unit switchgear with six sulfur hexafluoride load switch as the main switch and the entire cabinet with air insulation, suitable for distribution automation, both compact and expandable metal enclosed switch device, has the advantages of simple structure, flexible operation, reliable safety and convenience chain, features, on various occasions, technology different user requirements can provide satisfactory, sensing technology and the new protection relay used, with advanced technical performance and flexible assembly scheme can fully meet the changing needs of the market.Xgn15-12 can also be assembled based on the needs of users with the contemporary international highest technical level of ABB or VD4, HD4, VSD circuit breaker. Ring network cabinet the main switch operation manual, electric two. With FTU, RTU can meet with "four wave".
This product conforms to IEC29833365129694420,56529932, GB3804390611022 standard.
Main technical parameters
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Rated voltage
|
kV
|
12
|
|
2
|
Rated lightning impulse withstand voltage
|
Alternate and to ground
|
kV
|
75
|
|
Fracture surface
|
kV
|
85
|
|
3
|
One minute power frequency withstand voltage
|
Alternate and to ground
|
kV
|
42
|
|
Fracture surface
|
kV
|
48
|
|
4
|
Rated frequency
|
Hz
|
50/60
|
|
5
|
Rated current
|
main bus-bar
|
A
|
630 1250
|
|
branch bus-bar
|
A
|
630
|
|
6
|
Rated short time withstand current
|
major loop
|
kA
|
25/2s
|
|
ground loop
|
kA
|
20/2s
|
|
7
|
Rated peak withstand current
|
kA
|
50
|
|
8
|
Transfer current
|
A
|
1750
|
|
9
|
Protection level
|
|
IP55
|
|
10
|
Load switch lifetime
|
time
|
5000
|
|
11
|
Grounding switch lifetime
|
time
|
2000
|
Classic combination
XL-XGN15-12 series ring main unit switchgear according to the user's need to provide a variety of combination of programs, the main switch can choose N36-12D(R) FL, FL (R) N36A-12D type load switch, ABB SFG-12 type load switch, ABB HD4, VSD, VD4 type vacuum circuit breaker.
Using environmental conditions
A. Elevation height less than or equal to 2500m
B. Ambient temperature -35~45 ℃ , the maximum temperature difference is ≤ 25 ℃
C. Daily relative humidity average no more than 95%
D. Monthly relative humidity average does not exceed 90%;
E. Seismic capacity: seismic intensity does not exceed 8 degrees;
