Product Overviews

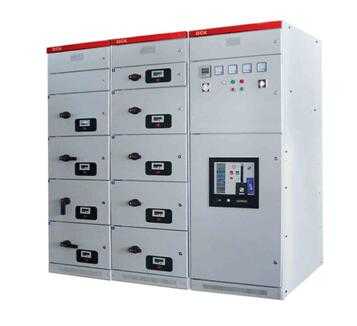

GCK LV motor control center (MCC) applies to 380 - 660V AC 50Hz low-voltage distribution system for power power receiving and feeding, lighting, motor control and power compensation. It contains functions of power center (PC) and motor control center(MCC) which is served for power supply and distrbution as well as power control in places as factories, mines, airport, hospitals, high-rise buildings and etc.
Working Conditions
1.Ambient air temperature: -5℃~+40℃.
Daily average temperature:≤35℃.
When the actual temperature exceed the range, it should be used by reducing the
capacity accordingly.
2.T ransport and store temperature: -25℃~+55℃. do not exceed +70℃ in short
time.
3.Altitude: ≤2000m.
4.Relative humidity : ≤50%, when temperature is +40℃.
When temperature is low , larger relative humidity is allowed. when it is +20℃,
relative humidity can be 90%. Since the temperature change will make out
condensation.
5.Installation inclination:≤5%
6.Applicable in the places without corrosive and flammable gas.
Note: Customized products are available.
Technical Data
|
No.
|
Item
|
Parameter
|
|
1
|
Protection degree
|
IECUIP40,NEMA TYPE-1
|
|
2
|
Rated operating voltage(V)
|
AC380
|
|
3
|
Rated insulation voltage(V)
|
660
|
|
4
|
Environment
|
Indoor
|
|
5
|
Altitude
|
≤2000m
|
|
6
|
Ambient temperature
|
-50~+40℃; min. temperature of storage and transportation -30℃
|
|
7
|
Relative humidity
|
≤85%
|
|
8
|
Control motor capacity(kW)
|
0.45-155
|
|
9
|
Lifespan
|
500 times operation
|
|
10
|
Horizontal busbar current rating(A)
|
1600. 3150
|
|
11
|
Vertical busbar current rating(A)
|
630
|
|
12
|
Main circuit contact connector current rating(A)
|
200, 400
|
|
13
|
Auxiliary circuit contact connector current rating(A)
|
20
|
|
14
|
Feed circuit max. current rating(A)
|
400
|
|
15
|
Power reception circuit current rating(A)
|
1000,1600,2000,2500
|
|
16
|
Rated short time withstand current (effective value/A)
|
50, 80
|
|
17
|
Rated short time withstand current (Peak value/A)
|
5, 176
|
|
18
|
Withstand voltage(V/min.)
|
2500
|
V. The universal dimensions (mm) of the cabinet are shown in the following table
|
Height
|
2200
|
|
Width
|
400
|
600
|
800
|
1000
|
|
Depth
|
800
|
1000
|
800
|
1000
|
600
|
800
|
1000
|
600
|
800
|
1000
|
