Quick Details
Description
- Place of Origin: China (Mainland)
- Brand Name: XILING
- Model Number: SC(B)10
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Autotransformer
Production introduction

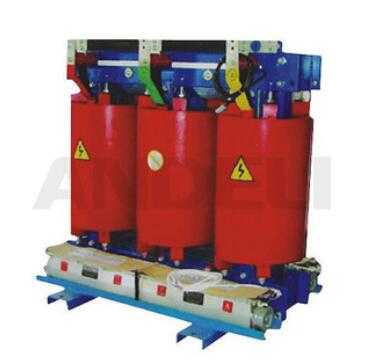

Our company has developed this product by ourselves.As a high performance,high safety,pollution free dry-type transformer,it is suitable for the harsh environments where there is a high fire protection requirement,the great load fluctuation and the site where is of filth and moisture.For example:airport,power plant,metallurgy operation,hospital,high building shopping center,densely inhabited ared,petrochemical industry,nuclear power station and nuclear submarine,elc.
Normal service conditions
1.A unique ceramic type of insulation structure is adopted in H-class high strength insulation cylinders and high-frequency ceramic cushion blocks are adopted to ensure that no deformation will occur.
2.The high-voltage and low-voltage windings are made of NOMEX wrapped flat copper wires and imported copper foils.And they are sealed with high strength insulation materials.
3.The iron core is made of laminated imported high-quality silicon-steel sheets of high magnetic conductivity with a 45 stepwise all-bias structure.A flexible fastening unit is adopted to fasten the winding and iron core,which ensures a relatively low no-load loss and low noise.
4.Outlet terminals are fixed to the top of winding,taps are in the middle of winding,low-voltage line terminal are in plate-type current-conducting rows for which cold pressure welding is adopted.
Normal service conditions
1)Altitude should not be over 1000m:indoor type
2)Highest ambient temperature should not over:+40oC;Highest daily average should not over temperature:+30oC
3)Highest annual average temperature should not over +20oC,lowest temperature should not below -5oC,We can provide transformer operated in special conditions according to user's requirement.
XILING is mainly engaged in 35 kv and below, low-voltage electrical equipment development, production, sales, the company mainly complete sets of products are: low-voltage distribution box, lighting box, meter box, power box, distribution box with kinds of non-standard, cable connection box. Including low voltage power distribution ark, west ling group, ABB company commissioned alliance MDMax grant type low voltage switchgear, GCS and houndreds types product as like GCK, MNS, GGD, frequency conversion cabinet, Schneider company Prisma ark, ABB ARTU ark, anya kirilova appears sad ark, XDB low-voltage dynamic reactive power compensation equipment and harmonic treatment devices, as well as non-standard distribution cabinets, etc. 10 kv medium voltage switchgear: GG - 1 a, XGN2-10 box fixed metal enclosed switchgear, JYN, KYN1, KYN28-12 (GZS1) indoor communication metal sheathed type high voltage switch cabinet
Mainly engaged in low-voltage electrical components, 2 types of mechanical and electronic agent distribution. Main business and agent products: inverter, soft starter, series of automatic control and control series of low-voltage circuit breaker, contactor, relay, relay protection, knife switch, isolating switch, capacitor, dual power switching device, high voltage vacuum circuit breaker, high and low voltage transformer, high voltage load switch, high and low voltage fuse, microcomputer integrated protection device and automatic control products, lights, button, terminals, meter and other components and water pumps, valves, air blower, motor, transformer, wire and cable and other mechanical and electrical products to be about more than 1000 varieties, more than 20000 kinds of commonly used specifications.
