Quick Details
Description
Place of Origin: Henan, China (Mainland) Brand Name: Huitian Model Number: HT-0988 Accuracy: ±1% of reading at rates>0.2 mps Response Time: 0-999 seconds Velocity: ±32 m/s Pipe Size: 20mm-6000mm Totalizer: positive and negative flow Liquid Types: Virtually all liquids Communication Interface: RS-232C Power Supply: 3 AAA Ni-H built-in batteries Housing Material: ABS
Packaging & Delivery
Packaging Details: wooden package
Delivery Detail: one week within payment received
Specifications

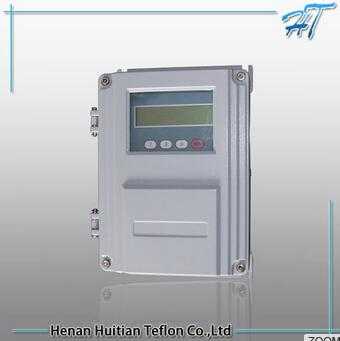

Wall-mount Ultrasonic Flow Meter/ultrasonic Flowmeter
1.High Accuracy ,high quality
2.Large measuring range
Wall-mount Ultrasonic Flow Meter/ultrasonic Flowmeter/flowmeter
Product Description
The ultrasonic flow meter is designed to measure the fluid velocity of
liquid within a closed conduit. The transducers are a non-contacting,
clamp on type, which will provide benefits of non-fouling operation and easy i
nstallation.
Linearity
0.5%
Repeatability
0.2%
Accuracy
±1% of reading at rates>0.2 mps
Response Time
0-999 seconds, user-configurable
Velocity
±32 m/s
Pipe Size
20mm-6000mm
Totalizer
7digit totals for net, positive and negative flow
Liquid Types
Virtually all liquids
Security
Setup values Modification Lockout.
Display
4x8 Chinese characters or 4x16 English letters
Transducers
Model M1 for standard, other 3 models for optional
Transducer Cord Length
Standard 2x10 meters, optional 2x 500 meters
Power Supply
3 AAA Ni-H built-in batteries
Data Logger
Built-in data logger can store over 2000 lines of data
Manual Totalizer
7-digit press-key-to-go totalizer for calibration
Housing Material
ABS
Case Size
100x66x20mm
Handset Weight
514g (1.2 lbs) with batteries
Philemon Instrument Co, LTD is located in Kaifeng city, Henan province. We are mainly engaged in Ultrasonic flow meter, ultrasonic level meter, radar level meter ,ultrasonic open channel flow meter ect. Our products have a technological improvement of the blind area have High-precision. In addition, there are the operation of electromagnetic flow meter, vortex flow meter, turbine flow meter, throttling device,Metal tube flow meter and so on. In accordance with customer's requirements, customization can be done by us, to meet the diverse needs of customers.
Philemon has standardized production workshop; advanced production equipment; modern enterprise management mode; programmed and standardized quality control system; which makes products with high quality and high performance during usage!
Widely accept talent, competition and mutual coexistence, which lead Philemon to a professional and strong R & D team, so that we always walk in the forefront of the industry.
We adhere to such business philosophy "quality first, reputation is important,management oriented, sincere service."; and with "quality is the life of enterprise", "customer satisfaction is our eternal pursuit" as our forever quality policy; to care for the environment, to repay the society, concern for employees as our social responsibility; "honesty, combat, innovation, team" as Philemon staff' s constant pursuit and goal, we would like together to cooperate with you for a better tomorrow!
