Quick Details
Description
Place of Origin: Henan, China (Mainland) Brand Name: HUITIAN Model Number: HT-1009 Name: ultrasonic flow meter Accuracy: +/-0.2% (Customize), +/-0.5% (Standard) Power supply: 12-28V DC ,battery Output: 4- 20 mA , pulse Caliber: DN15~DN6000 mm Connection: Flange, Clamp on, Thread Nominal pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3 Mpa Power consumption: <13W ambient temperature: -25 Deg C~+60Deg C Communication: RS232,RS-485,MODBUS,HART
Packaging & Delivery
Packaging Details: Export standard packing according to buyer's requirements
Delivery Detail: one week after received L/C at sight or T/T in advance
Electric insertion type ultrasonic flowmeter
Specifications:
Automatic ultrasonic flow meter
1 Linearity 0.5%
2 Repeatability 0.2%,
3 Accuracy better than 1%
4.ultrasonic flowmeter
Product Features:
pipe material Applicable for steel, stainless steel and other uniform dense quality pipe
medium water ,sea water ,dirty water alcohol oil and all of single stable liquid
Display 4 lines English characters on-screen display instantaneous flow, velocity, , cumulative flow, signal status working hours and so on
pipe liner plastic PTFE bakelite polypropylene Epoxy asphalt
measuring
range
1500:1
Technology:
1.operating power:isolation 8-36VDC
2.current: 50mA
3.protection level:IP57
4.transducer:clamp-on type,insertion type,in-line type.
5. special shielded twisted pair cable
6.Response Time 0-999 seconds, user-configurable
7.Velocity ±32 m/s
8.Repeatability Better than 0.2%
9.Accuracy ±1% of reading at rates>0.2 mps
10.Response Time 0-999 seconds, user-configurable
11. Record function
12. High precision and more convenient
13. Strong anti-interference
ultrasonic flowmeter:

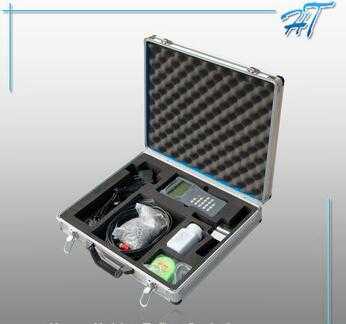

ultrasonic flowmeter for various industrial field in the liquid flow-line measurement of calibration and inspection. Has high accuracy, consistency is good, battery-powered, simple operation and easy to carry and other features, is currently the smallest, lightest quality, truly portable ultrasonic flowmeter.
Philemon Instrument Co, LTD is located in Kaifeng city, Henan province. We are mainly engaged in Ultrasonic flow meter, ultrasonic level meter, radar level meter ,ultrasonic open channel flow meter ect. Our products have a technological improvement of the blind area have High-precision. In addition, there are the operation of electromagnetic flow meter, vortex flow meter, turbine flow meter, throttling device,Metal tube flow meter and so on. In accordance with customer's requirements, customization can be done by us, to meet the diverse needs of customers.
Philemon has standardized production workshop; advanced production equipment; modern enterprise management mode; programmed and standardized quality control system; which makes products with high quality and high performance during usage!
Widely accept talent, competition and mutual coexistence, which lead Philemon to a professional and strong R & D team, so that we always walk in the forefront of the industry.
We adhere to such business philosophy "quality first, reputation is important,management oriented, sincere service."; and with "quality is the life of enterprise", "customer satisfaction is our eternal pursuit" as our forever quality policy; to care for the environment, to repay the society, concern for employees as our social responsibility; "honesty, combat, innovation, team" as Philemon staff' s constant pursuit and goal, we would like together to cooperate with you for a better tomorrow!
