Quick Details
Description
Place of Origin: Henan, China (Mainland) Brand Name: huitian Model Number: HT-0796 Power supply: 24VDC, 220VAC Caliber: DN15mm-6000mm Output: 4- 20 mA , pulse Connection: Clamp on, Inserted, Inline Accuracy: +/-1.0% (Standard) Nominal pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3 Mpa Medium temperature: -30°C - +160 °C Date: Save more than ten years Medium: liquid, oil Velocity: ±32 m/s
Packaging & Delivery
Packaging Details: wooden box or based on your special requirement.

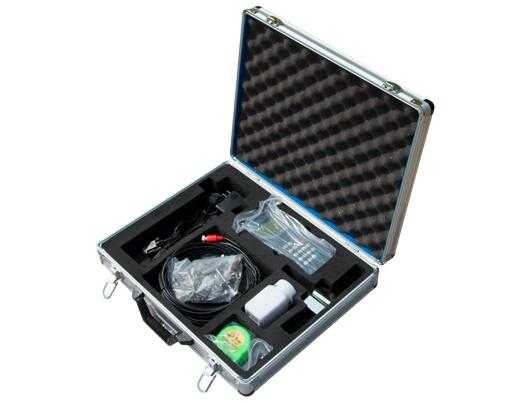

Hand Held high quality protable liquid Ultrasonic Flowmeter
Features:
1.Repeatability Better than 0.2%
2.Accuracy ±1% of reading at rates>0.2 mps
3.Response Time 0-999 seconds, user-configurable
4.Velocity ±32 m/s
5.Totalizer 7-digit totals for net, positive and negative flow
respectively
6.Liquid Types Virtually all liquids
7.Security Setup values Modification Lockout. Access code needs
unlocking
8.Display 4x8 Chinese characters or 4x16 English letters,display
instant flow,velocity,total flow,signal status
9.Signal output Non-isolation RS232(FUJI extention protocol) ,one
channel isolation OCT output
10.Transducers Clamp on type transducers
11.Transducer Cord Length Standard 2x10 meters, optional 2x 500 meters
12.Power Supply 3 AAA Ni-H built-in batteries. When fully recharged it will
last over 12 hours of operation.
13.100V-240VAC for the charger
14.Data Logger Built-in data logger can store over 2000 lines of data
15.Housing Material ABS
16.Case Size 100x66x20mm
17.Handset Weight 514g (1.2 lbs) with batteries
Technology features:
1:operating power:isolation 8-36VDC
2:current: 50mA(under the condition of connection without keyboard display and sound of buzzer)
3: signal output: one channel standard isolation RS485 output
One channel isolation 4-20mA or 0-20mA passive output.
Two channel OCT output(programmed between the pulse
width(6-1000ms),default before leaving factory (200ms))
4: signal input: two channel three wire system PT100 platinum resistor input loop,to make heat
meter has the function of displaying heat quantity.
Three channel 4-20mA input optional,accuracy:0.1%,has the ability to input the
signals of pressure, liquid level, temperature and so on.
5:display:2*10 backlit LCD,displaying instant flow rate,velocity,positive,negative,net totaliser
flow rate.
6:operating: 4 keypad tactile keyboard operating
7:other functions: automatic memory the positive,negative,net totaliser or flow rate and heat
quantity of the last 512 days,128 months,10years
Automatic memory the time of power on/off and flow rate of the last 30 times,
realize to replenish by hand or automatically,read the datas through Modbus
communication protocol.
8:protection level:IP57
9:transducer:clamp-on type,insertion type,in-line type.
Optional accessory:
1:clamp-on transducer(standard S1 type,standard M1 type,high temperature S1H,high temperature
M1H)
2:insertion transducer(standard insertion B,cement insertion B)
3:in-line type transducer(hygienictype,standard type)
4:remote second times operation meter(wall-mounted type,panel-mounted type)
5:PT100 there wire platinum resistor(used for heat meter)
6: strap(applied with installation of transducers on cast iron,GRP,PVC,etc. that can not be welded
directly.
7: special shielded twisted pair cable
8: ultrasonic thickness gauge(measure the thickness of pipe,reduce error,increase accuracy)
