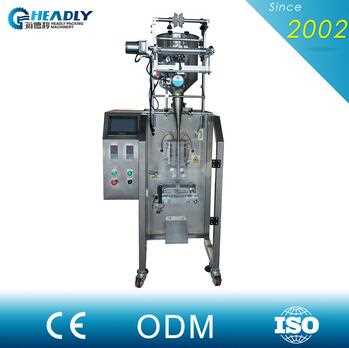

• Superior Quality Piston Type Honey Pouch Bag Filling Machine

Superior Quality Piston Type Honey Pouch Bag Filling Machine

Operation: Fully Automatic; Additional: Toolbox+Operation Instruction; Production: Custom-Made Models; Certificate: CE+ISO; ODM: Accepted;

Product Details

Quick Details

Description

  • Type: Filling Machine
  • Condition: New
  • Application: Beverage, Chemical, Food, Medical
  • Packaging Type: Bags, Pouch, Stand-up Pouch
  • Packaging Material: Plastic, Opp/Cpp.Opp/Ce.Mst/Pe/Pet/Pe
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 1000W
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Headly
  • Model Number: HDL-Y60C
  • Dimension(L*W*H): (L)640*(W)700*(H)1580
  • Weight: 225 kg
  • Certification: CE,ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Contact Part: Food Grade Stainless Ss 304
  • Language: English+Arabic+Any
  • Electronic Parts:Schneider+Panasonic+Smc
  • Control: Imported Plc
  • Operation: Fully Automatic
  • Additional: Toolbox+Operation Instruction
  • Production: Custom-Made Models
  • Certificate: CE+ISO
  • ODM: Accepted

Model No

Y60C

420Y

520Y

Product Application

Liquid

Liquid

Liquid

Volume Range

1-50 ml

Max.1000ml

Max.2000ml

Machine Speed

40-70 bag/min

5-30 bag/min

5-25 bag/min

Film width

Max.230

Max.420

Max.520

Machine size (mm)

L640*W700*H1580

L1217*W1015*H1570

L1488*W1080*H1850

Machine Weight

225 kg

750 kg

800 kg

Packing Size

Length:1-150
width:1-100

Length:30-800mm
width:80-200

Length:80-350mm
width:100-250

Power

220V.50Hz.1KW

220V.50Hz.3.2Kw

220V.50Hz.4Kw

Sealing Type

3/4 sides sealing

Center Sealing; Pillow Type

Center Sealing; Pillow Type

Main Motor

Main Motor For Chian motor

Main Motor For Panasonic

Main Motor For Panasonic

Range of Application

ketchup,catchup,cream,shampoo,chilli sauce

all kinds of liquid or more stick liquid:soy sauce,soup,shampoo,sauce

Machine Motion

Intermittent

Machine control Through

PLC

Packing Film

Any heat sealable laminated roll

Feeding System

Pistion type

Packing film pulling

Through electromagnetic clutch and brake

Contact Parts

Food Grade Stainless SS 304

Temperature Controller

PID Based

Machine Features

Individual Temperature Control, High Speed Counter, Voltage Vector Control

language

English+Arabic+any

additional

toolbox+operation instruction

Optional Features

punching Cutting Device,  Pneumatic Coding Device, Nitrogen Flushing Device



Superior Quality Piston Type Honey Pouch Bag Filling Machine

Company Profile

Foshan Headly Packaging Machinery Co., Ltd. located in Foshan city Guangdong Province, near the south China's most developed Huangpu and Nansha, Baiyun airport, Jingzhu expressway and other important transport hub in China, the company covers an area of 2000 square meters, the existing staff of more than 30. Headly is a professional engaged in the production of packaging machinery manufacturer,The main products are: horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and other dozens of mechanical. All products are widely used in food, medicine, daily necessities, chemical, toys, hardware accessories and other industries. Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers. Headly have the technical talent,with high-quality team, can in time for customers to provide the perfect after sale service, innovation, pragmatic, efficient, taking the responsibility to win trust! is the headly business purpose. Headly goal is to become a world brand, to provide comprehensive one-stop services for more enterprise customers, and customers work together to create brilliant.
