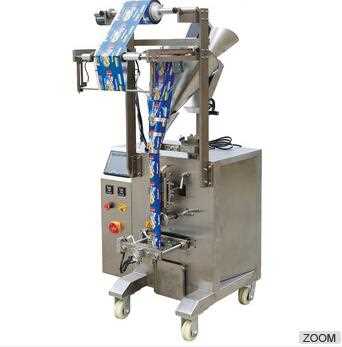

• Automatic Tea Powder, Flour, Pepper Powder Packing Machine

Automatic Tea Powder, Flour, Pepper Powder Packing Machine

Dimension(L*W*H): L)980*(w)680*(H)1850mm; Certification: CE; After-sales Service Provided: Engineers available to service machinery overseas; machine: packing machine;

Product Details

Quick Details

Description

  • Type: Multi-Function Packaging Machine
  • Condition: New
  • Function: Filling, Sealing
  • Application: Chemical, Food
  • Packaging Type: Cartons
  • Packaging Material: Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 50Hz.2.2KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Headly
  • Model Number: HLD-160F
  • Dimension(L*W*H): L)980*(w)680*(H)1850mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • machine: packing machine

Model No

F60C

160F

Product Application

Powder

Powder

Range of Application

3in1coffee,feciel powder,slimming tea,tale powder

soybean meal,flour,milk powder,pepper,feed,coffee powder

Volume Range

1-100 ml

50-250 ml

Packing Size (mm)

Length:1-150
width:1-100

Length:30-200
width:50-150

Machine Motion

Intermittent

Intermittent

Machine control Through

PLC

PLC

Machine Speed

40-70 bag/min

5-60 bag/min

Film width

Max.230

Max.320

Packing Film

Any heat sealable laminated roll

Any heat sealable laminated roll

Power

220V.50Hz.1.2 KW

220V.50Hz.2.4Kw

Machine size (mm)

L640*W700*H1580

L1000*W700*H1700

Machine Weight

225 kg

350 kg

Feeding System

Auger Filler

Auger Filler

Packing film pulling

Through electromagnetic clutch and brake

Through electromagnetic clutch and brake

Contact Parts

Food Grade Stainless SS 304

Food Grade Stainless SS 304

Sealing Type

3/4 sides sealing

Center Sealing;   Pillow Type

Main Motor

Main Motor For Chian motor

Main Motor For Dorna

Temperature Controller

PID Based

Machine Features

Individual Temperature Control, High Speed Counter, Voltage Vector Control

language

English+Arabic+any

additional

toolbox+operation instruction

Optional Features

punching Cutting Device,  Pneumatic Coding Device, Nitrogen Flushing Device



Automatic Tea Powder, Flour, Pepper Powder Packing Machine

Company Profile

Foshan Headly Packaging Machinery Co., Ltd. located in Foshan city Guangdong Province, near the south China's most developed Huangpu and Nansha, Baiyun airport, Jingzhu expressway and other important transport hub in China, the company covers an area of 2000 square meters, the existing staff of more than 30. Headly is a professional engaged in the production of packaging machinery manufacturer,The main products are: horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and other dozens of mechanical. All products are widely used in food, medicine, daily necessities, chemical, toys, hardware accessories and other industries. Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers. Headly have the technical talent,with high-quality team, can in time for customers to provide the perfect after sale service, innovation, pragmatic, efficient, taking the responsibility to win trust! is the headly business purpose. Headly goal is to become a world brand, to provide comprehensive one-stop services for more enterprise customers, and customers work together to create brilliant.
