• New design high speed tile roll plastic bag flow pillow packing machine

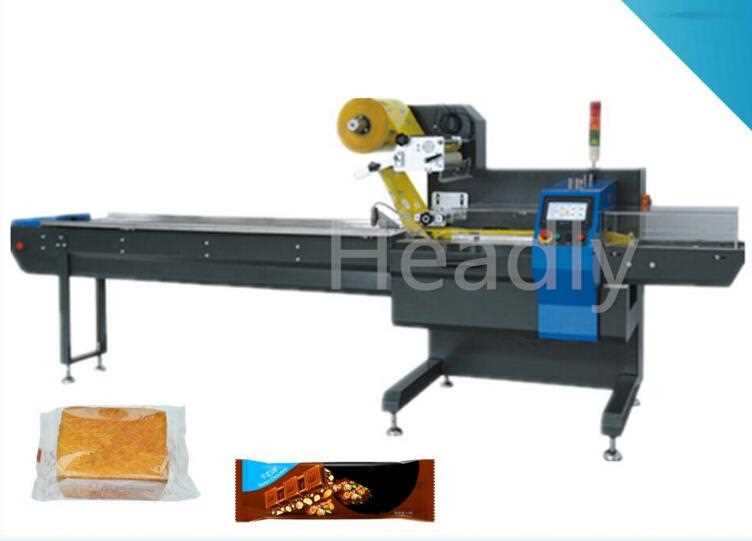

New design high speed tile roll plastic bag flow pillow packing machine

Packing Material:OPP/CPP,OPP/CE,/MST/PE/PET/PE; Additional: Toolbox+Operation Instruction; Payment: 30%Deposit 70%Before Shipment; Applications:Food,Bread,Cake,Biscuit,Noodles,Boxes;

Product Details

Quick Details

Description

  • Type: Multi-Function Packaging Machine
  • Condition: New
  • Function: Sealing, Wrapping
  • Application: Chemical, Food, Medical
  • Packaging Type: Bags, Film, Pouch, Stand-up Pouch
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 50/60Hz.2.6KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Headly
  • Model Number: HDL-250
  • Dimension(L*W*H):(L)3770x(W)720x(H)1450mm
  • Certification: CE,ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Contact part: Food Grade Stainless SS 304
  • Control: Panasonic PLC
  • Language: English+Arabic+Any
  • Design: Upgraded
  • Spare Parts: Schneider,Panasonic
  • Type Of Bag: Pillow Bag
  • Packing Material:OPP/CPP,OPP/CE,/MST/PE/PET/PE
  • Additional: Toolbox+Operation Instruction
  • Payment: 30%Deposit 70%Before Shipment
  • Applications:Food,Bread,Cake,Biscuit,Noodles,Boxes



Model No

250B

250D

250E

250S

320B

320D

Product Application

Packaging Various Kinds Of Regular Objects Like Biscuit,Pies,Chocolates,Bread,Cakes,Plate

Bag Length (Mm)

65-190 Or  120-280

90-220

50-115

45-90

 65-190 Or              120-280

90-220 Or                   150-330

Bag Width (Mm)

 30-110

 30-80

50-160

Product Height(Mm)

Max.40

Max.55

Max.35

Max.40

Max.55

Machine Motion

Continuous

Machine Control Through

Panasonic PLC

Machine Speed

40-230 Bag/Min

60-330 Bag/Min

40-230 Bag/Min

Film Width

Max.250 Mm

Max.320 Mm

Film Roll Diameter

Max.320 Mm

Packing Film

Any Heat Sealable Laminated Roll

Power

220V 50/60Hz 2.4Kw

220V 50/60Hz 2.6Kw

Machine Size (Mm)

L3770*W670*H1450

L3770*W720*H1450

Machine Weight

About 700 Kg

About 800 Kg

Packing Film Pulling

Through Electromagnetic Clutch And Brake

Contact Parts

Food Grade Stainless Ss 304

Sealing Type

Pillow Bag

Main Motor

From Taiwan

Temperature Controller

Pid Based

Machine Features

Dual Panasonic Frquency Conversion Control,High Sensitivity Photoelectric Eye Color Tracing,Temperature Pid Control

Language

English+Arabic+Any

Additional

Toolbox+Operation Instruction

Optional Features

Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device,Angle Folding Device

New design high speed tile roll plastic bag flow pillow packing machine

Company Profile

Foshan Headly Packaging Machinery Co., Ltd. located in Foshan city Guangdong Province, near the south China's most developed Huangpu and Nansha, Baiyun airport, Jingzhu expressway and other important transport hub in China, the company covers an area of 2000 square meters, the existing staff of more than 30. Headly is a professional engaged in the production of packaging machinery manufacturer,The main products are: horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and other dozens of mechanical. All products are widely used in food, medicine, daily necessities, chemical, toys, hardware accessories and other industries. Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers. Headly have the technical talent,with high-quality team, can in time for customers to provide the perfect after sale service, innovation, pragmatic, efficient, taking the responsibility to win trust! is the headly business purpose. Headly goal is to become a world brand, to provide comprehensive one-stop services for more enterprise customers, and customers work together to create brilliant.
