Quick Details
Description
- Model NO.: SJY0.3-3
- Lift Mechanism: Scissor Lift
- Moves: Self-propelled
- Running Mode: Moving
- Certification: GS, SGS, CE, RoHS, ISO 9001
- Trademark: SHYTGER
- Specification: CE, ROHS, SGS
- HS Code: 84279000
- Application: Workshop Crane, Warehouse Crane, Building Crane
- Carrying Capacity: Light Level
- Driven Type: Hydraulic
- Feature: Insulating
- Item: Scissor Aerial Lifting Platform
- Transport Package: Seaworthy Package
- Origin: Zhejiang
Specifications
Main structure made of high-strength manganese steel,
High stability for aloft work,
Stable quality,
Good after-sales service

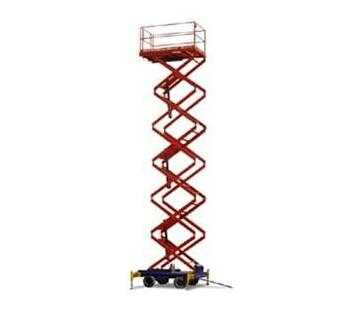

The scissors aerial work platform is a special equipment which can be widely used for the purpose of working high above the ground. It's scissors-like mechanical structure that gives the platform a high stability when it is lifted up.
The spacious work platform and high bearing capacity have already enlarged the aerial service scope of the platform and make it suitable for several persons working together simultaneously. With the equipment, aerial work (aloft work) will be done more efficiently and more safely.
Quality certificate: ISO9001-2000
Warranty period: 1 year.
After sales-service: Lifetime (lifelong) maintenance (guarantee).
Available anti-burst device for hydraulic pipeline.
Available protection device against electric leakage and phase-lacking protector.
Available protection device against overloading.
Available urgent lowering device when power failure.
Much more details, please feel free to contact us.
|
Scissors Aerial Work Platform
|
|
|
Model
|
Capacity (kg)
|
Max. Height
(mm)
|
Min. Height(mm)
|
Platform Size
L*W (mm)
|
Lifting Time
(s)
|
Motor Power(kw)
|
Voltage (V)
|
Deadweight
(kg)
|
|
|
SJY0.3-3
|
300
|
3000
|
850
|
1150×700
|
16
|
0.75
|
380V/50Hz
|
400
|
|
|
SJY0.2-4
|
200
|
4000
|
850
|
1500×700
|
23
|
0.75
|
380V/50Hz
|
500
|
|
|
SJY0.48-4.5
|
480
|
4500
|
850
|
1780×840
|
31
|
1.5
|
380V/50Hz
|
560
|
|
|
SJY0.15-5
|
150
|
5000
|
950
|
1500×700
|
22
|
0.75
|
380V/50Hz
|
560
|
|
|
SJY0.3-6
|
300
|
6000
|
950
|
1780×840
|
44
|
1.1
|
380V/50Hz
|
750
|
|
|
SJY0.48-6
|
480
|
6000
|
950
|
1780×840
|
49
|
1.5
|
380V/50Hz
|
750
|
|
|
SJY0.48-7.2
|
480
|
7200
|
1350
|
2100×1000
|
62
|
1.5
|
380V/50Hz
|
1100
|
|
|
SJY0.3-9
|
300
|
9000
|
1500
|
2100×1000
|
72
|
1.5
|
380V/50Hz
|
1200
|
|
|
SJY0.48-9
|
480
|
9000
|
1600
|
2000×1000
|
81
|
1.5
|
380V/50Hz
|
1300
|
|
|
SJY0.3-11
|
300
|
11000
|
1600
|
2100×1200
|
73
|
2.2
|
380V/50Hz
|
1500
|
|
|
SJY0.48-11
|
480
|
11000
|
1600
|
2100×1200
|
80
|
2.2
|
380V/50Hz
|
1500
|
|
|
SJY0.3-14
|
300
|
14000
|
1800
|
2400×1500
|
90
|
4
|
380V/50Hz
|
2500
|
|
|
SJY0.48-14
|
480
|
14000
|
1800
|
2400×1500
|
132
|
4
|
380V/50Hz
|
2700
|
|
|
SJY0.3-16
|
300
|
16000
|
1980
|
2400×1500
|
100
|
4
|
380V/50Hz
|
3000
|
|
|
SJY1-6
|
1000
|
6000
|
1330
|
2000×1000
|
48
|
2.2
|
380V/50Hz
|
1380
|
|
|
SJY2-6
|
2000
|
6000
|
1480
|
2300×1200
|
96
|
2.2
|
380V/50Hz
|
2150
|
|
|
SJY2-8
|
2000
|
8000
|
1800
|
2350×1200
|
90
|
3
|
380V/50Hz
|
2500
|
|
|
SJY1-9
|
1000
|
9000
|
1600
|
2100×1200
|
55
|
4
|
380V/50Hz
|
1500
|
|
|
SJY1.5-9
|
1500
|
9000
|
1800
|
2400×1500
|
90
|
4
|
380V/50Hz
|
2500
|
|
|
SJY1-12
|
1000
|
12000
|
1800
|
2400×1500
|
86
|
4
|
380V/50Hz
|
2600
|
|
|
Self-propelled Aerial Work Platform
|
|
Model
|
Capacity (kg)
|
Max. Height (mm)
|
Min. Height(mm)
|
Platform Size
L*W (mm)
|
Lifting Time
(s)
|
Motor Power(kw)
|
Voltage
(V)
|
Deadweight
(kg)
|
|
SJZ0.3-3
|
300
|
3000
|
850
|
1150×700
|
16
|
0.75
|
380V/50Hz
|
400
|
|
SJZ0.2-4
|
200
|
4000
|
850
|
1500×700
|
23
|
0.75
|
380V/50Hz
|
500
|
|
SJZ0.48-4.5
|
480
|
4500
|
850
|
1780×840
|
31
|
1.5
|
380V/50Hz
|
560
|
|
SJZ0.15-5
|
150
|
5000
|
950
|
1500×700
|
22
|
0.75
|
380V/50Hz
|
560
|
|
SJZ0.3-6
|
300
|
6000
|
950
|
1780×840
|
44
|
1.1
|
380V/50Hz
|
750
|
|
SJZ0.48-6
|
480
|
6000
|
950
|
1780×840
|
49
|
1.5
|
380V/50Hz
|
750
|
|
SJZ0.48-7.2
|
480
|
7200
|
1350
|
2100×1000
|
62
|
1.5
|
380V/50Hz
|
1100
|
|
SJZ0.3-9
|
300
|
9000
|
1500
|
2100×1000
|
72
|
1.5
|
380V/50Hz
|
1200
|
|
SJZ0.48-9
|
480
|
9000
|
1600
|
2000×1000
|
81
|
1.5
|
380V/50Hz
|
1300
|
|
SJZ0.3-11
|
300
|
11000
|
1600
|
2100×1200
|
73
|
2.2
|
380V/50Hz
|
1500
|
|
SJZ0.48-11
|
480
|
11000
|
1600
|
2100×1200
|
80
|
2.2
|
380V/50Hz
|
1500
|
|
SJZ0.3-14
|
300
|
14000
|
1800
|
2400×1500
|
90
|
4
|
380V/50Hz
|
2500
|
|
SJZ0.48-14
|
480
|
14000
|
1800
|
2400×1500
|
132
|
4
|
380V/50Hz
|
2700
|
|
SJZ0.3-16
|
300
|
16000
|
1980
|
2400×1500
|
100
|
4
|
380V/50Hz
|
3000
|
|
Vehicle-mounted Aerial Platform
|
|
Model
|
Capacity (kg)
|
Max. Height (mm)
|
Min. Height(mm)
|
Table Size
L*W (mm)
|
Dimensions
(L*W*H) (mm)
|
Lifting Time
(s)
|
Motor Power(kw)
|
Voltage
(V)
|
Deadweight
(kg)
|
|
SJZ0.3-6
|
300
|
6000
|
950
|
1780×840
|
3000×1100×1100
|
35
|
1.5
|
24
|
1450
|
|
SJZ0.48-6
|
480
|
6000
|
950
|
1780×840
|
3000×1100×1100
|
38
|
1.5
|
24
|
1450
|
|
SJZ0.48-7.2
|
480
|
7200
|
1350
|
2100×1000
|
3500×1350×1550
|
72
|
1.5
|
40
|
2700
|
|
SJZ0.3-9
|
300
|
9000
|
1500
|
2100×1000
|
3500×1350×1700
|
84
|
1.5
|
40
|
2800
|
|
SJZ0.48-9
|
480
|
9000
|
1600
|
2000×1000
|
3500×1350×1850
|
95
|
1.5
|
40
|
2900
|
|
SJZ0.48-9
|
480
|
9000
|
1600
|
2100×1200
|
3500×1350×1850
|
83
|
3
|
40
|
3100
|
|
SJZ0.3-11
|
300
|
11000
|
1600
|
2100×1200
|
3500×1350×1850
|
85
|
1.5
|
40
|
3100
|
|
SJZ0.48-11
|
480
|
11000
|
1600
|
2100×1200
|
4000×1800×2000
|
93
|
1.5
|
40
|
3100
|
|
SJZ0.3-14
|
300
|
14000
|
1800
|
2600×1500
|
4000×1800×2000
|
135
|
3
|
40
|
4200
|
|
SJZ0.48-14
|
480
|
14000
|
1800
|
2600×1500
|
4000×1800×2000
|
200
|
3
|
40
|
4400
|
|
SJZ0.3-16
|
300
|
16000
|
1980
|
2600×1500
|
4000×1800×2180
|
150
|
3
|
40
|
4700
|
|
Telescopic Cylindrical Aerial Platform
|
|
Model
|
Capacity (kg)
|
Platform Height (mm)
|
Working Height (mm)
|
Table Size
L*W (mm)
|
Overall Dimension
(L*W*H) (mm)
|
Lifting Time (s)
|
Motor Power(kw)
|
Voltage
(V)
|
Deadweight
(kg)
|
|
GTC-6
|
200
|
6000
|
7800
|
700×800
|
800×1000×1900
|
113
|
0.75
|
220-AC
|
520
|
|
GTC-8
|
200
|
8000
|
9800
|
700×800
|
900×1200×2000
|
118
|
0.75
|
220-AC
|
650
|
|
GTC-10
|
200
|
10000
|
11800
|
700×800
|
900×1200×2000
|
270
|
0.75
|
220-AC
|
730
|
|
GTC-12
|
200
|
12000
|
13800
|
700×800
|
1440×1200×2150
|
300
|
1.1
|
220-AC
|
950
|
|
GTC-14
|
200
|
14000
|
15800
|
700×800
|
1440×1200×2250
|
400
|
1.1
|
220-AC
|
1070
|
|
GTC-16
|
200
|
16000
|
17800
|
700×800
|
1740×1400×2250
|
533
|
1.1×2
|
220-AC
|
1350
|
|
GTC-18
|
200
|
18000
|
19800
|
700×800
|
1740×1400×2470
|
600
|
1.1×2
|
220-AC
|
1430
|
|
GTC-20
|
200
|
20000
|
21800
|
700×800
|
2000×1500×2700
|
667
|
1.1×2
|
220-AC
|
1650
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Since the foundation of SHYTGER, we have been strived to offer you high-class material handling solution and high-class service. SHYTGER Group has been specialized in manufacturing and selling forklift trucks, stackers, pallet trucks, loader trucks, container cranes, tire presses, dock ramps, aerial work platforms, other hydraulic equipments and their parts. After many years successful development, SHYTGER Group has grown up to be a strong global supplier in material handling equipments and construction machinery field.
After great and constant efforts in recent years, we not only have our own production bases and international trade company, and have set up a strict quality assurance system, built up a strong management framework and established a perfect after-sale service system. SHYTGER has passed the ISO9001, ISO14001 and CE certifications, etc. In addition, our products have passed the inspection of global market and gain market recognition of the global customers!
With professional R&D team, well-trained workers and strict quality control system, we are able to supply reliable and high-quality products to our esteemed customers all around the world with guaranteed delivery time. The annual output reaches to 3000 units and our products are popular in over 50 countries and regions.
SHYTGER will continue to follow the corporate spirit "Innovation, Aggressiveness and Integrity" in future. Meantime, we will strive to build the brand "SHYTGER" with the standard of globalization, specialization and environment protection and offer high-class products and service to the global customers!
