Quick Details
Description
- Model NO.: (APP2)
- Carrying Capacity: Middle-Level
- Running Mode: Stationary

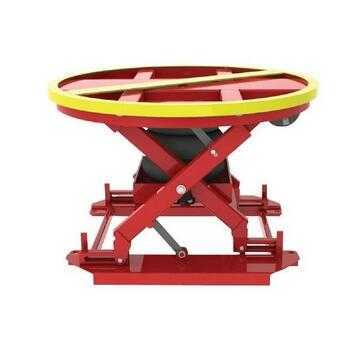

- Name: 200kgs Palletpal Lift Table Lever Loader
- Transport Package: Seaworthy Packing
- Origin: Shanghai, China
- Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Driven Type: Air Sc
- Feature: Insulating
- Trademark: SHYTGER
- Specification: CE, SGS, ISO
- HS Code: 8428909090
The PalletPal 360 Loader is a simple device that will automatically main-
Tain a load at the ideal height for manual loading and unloading. If a palletized load
Is placed on the unit, the unit gradually rises as boxes or parts are removed. This
Automatically maintains the top of the load at the correct working height.
The unit may also be used for the reverse application. An empty pallet may be placed
On the PalletPal 360 Loader The unit gradually lowers as boxes or parts are added.
Again, this keeps the top of the load at the correct height. Complete pallets may be
Loaded or unloaded using a stacker or fork lift. See Figures 5 and 6.
This manual contains information to help you to learn about the safe and proper
Installation, use, and upkeep of your PalletPal 360 Loadr unit. Please be sure that this
Manual is available to anyone who uses or services the unit.
PalletPal 360 Loader units may be used in a wide variety of industrial settings.
|
SPECIFITION
|
|
Load capacity
|
400 to 4500 ibs
|
181.44-2041.2 kg
|
|
Load size
|
50''wide*50''long*72''high(max)
|
127*127*182.88cm
|
|
Base frame
|
36''*36''
|
91.44*91.44cm
|
|
Compressed height
|
9 1/2 inches
|
24.13cm
|
|
Extended height
|
27 3/4 inches
|
70.485 cm
|
|
Air resource
|
80 psl
|
5.516 bar
|
|
Maximum system air presure
|
61psl
|
4.20595 bar
|
|
Safety relief valve setting
|
125psl
|
8.61875 bar
|
|
Roating ring, outer diameter
|
43-5/8 inches
|
110.1725 cm
|
|
Roating ring,inner diameter
|
40-5/8 inches
|
102.5525 cm
|
|
Ship weight
|
375 lbs
|
170.1 kg
|
|
Operating environment
|
indoor
|
|
|
Operating temperature
|
0-120 F
|
0-48C
|
