Quick Details
Description
- Model NO.: SJY0.3-9
- Lift Mechanism: Scissor Lift
- Moves: Moving
- Running Mode: Moving
- Certification: ISO 9001
- Color: as Your Require
- Lifting Height: 12000mm
- Usage: Maintenance
- Platform Surface: Checkered Plate or Plain Plate
- Model Number: Sjy0.3-9
- Transport Package: Export Standard Packing
- Origin: China
- Application: Workshop Crane, Warehouse Crane
- Carrying Capacity: Light Level
- Driven Type: AC & DC
- Feature: Explosion-Proof
- Type: 12 Meter Hydraulic Mobile Scissors Car Lift
- Capacity: 300kg
- Material: Steel
- Electric Engine: DC or AC
- Certificate: ISO 9001
- Trademark: Ruibiao
- Specification: as for different models
- HS Code: 8428909090
|
Name
|
Hydraulic Mobile Scissors Car Lift
|
|
Brand
|
RuiBiao
|
|
Color
|
As your requirement
|
|
Material
|
NBR, SILICONE, VITON, HNBR, CR, PTFE, EPDM, etc. Can choose on your requirement.
|
|
Feature
|
Hot sale
|
|
Packing
|
Wooden case
|
|
Delivery
|
7-15days after receiving T/T payment
|
|
Port
|
Shanghai
|
|
Stock
|
rich,pls confirm with us before ordering
|
|
OEM and ODM
|
welcome
|

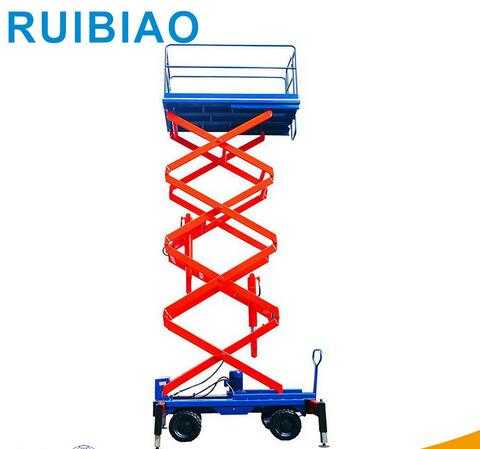

Hydraulic Mobile Scissors Car Lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Specifications-Hydraulic Mobile Scissors Car Lift
|
Model
|
Capacity(kg)
|
Max.Height(mm)
|
Min.Height(mm)
|
Platform size(mm)
|
Lifting time(s)
|
Motor power(kw)
|
Weight(kg)
|
|
SJY0.5-3
|
500
|
3000
|
850
|
1300x700
|
16
|
0.75
|
400
|
|
SJY0.5-5
|
500
|
5000
|
950
|
1300x700
|
43
|
0.75
|
620
|
|
SJY0.3-6
|
300
|
6000
|
950
|
1850x880
|
49
|
0.75
|
650
|
|
SJY0.5-6
|
500
|
6000
|
950
|
1850x880
|
54
|
1.1
|
650
|
|
SJY0.3-7.5
|
300
|
7500
|
1250
|
1850x1000
|
65
|
1.5
|
900
|
|
|
SJY0.5-7.5
|
500
|
7500
|
1350
|
1800x1000
|
72
|
1.5
|
1100
|
|
|
SJY0.3-9
|
300
|
9000
|
1500
|
1850x1000
|
75
|
1.1
|
1200
|
|
|
SJY0.5-9
|
500
|
9000
|
1600
|
1800x1000
|
80
|
1.5
|
1260
|
|
|
SJY0.3-11
|
300
|
11000
|
1600
|
2100x1150
|
83
|
2.2
|
1320
|
|
|
SJY0.5-11
|
500
|
11000
|
1600
|
2100x1150
|
88
|
2.2
|
1380
|
|
|
SJY0.3-12
|
300
|
12000
|
1600
|
2450x1350
|
85
|
2.2
|
1700
|
|
|
SJY0.5-12
|
500
|
12000
|
1800
|
2450x1350
|
90
|
3
|
1850
|
|
|
SJY0.3-14
|
300
|
14000
|
1800
|
2450x1350
|
98
|
3
|
2200
|
|
|
SJY0.5-14
|
500
|
14000
|
1980
|
2450x1350
|
120
|
3
|
2500
|
|
|
SJY0.3-16
|
300
|
16000
|
1980
|
2500x1500
|
130
|
3
|
2680
|
|
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
