Quick Details
Description
- Model NO.: SJG
- Lift Mechanism: Scissor Lift
- Moves: Moving
- Running Mode: Moving
- Certification: CE, ISO 9001
- Lifting Height: 3m, 4m, 5m, 6m, 7m or as Your Require
- Name: Hydraulic Small Warehouse Cargo Lift
- Certifictate: ISO9001
- Surface Treatment: Anti-Rust
- Platform Size: Warehouse Lifitng Equipments
- Transport Package: Plywood Case
- Origin: Shanghai, China
- Application: Workshop Crane, Warehouse Crane
- Carrying Capacity: Weight Level
- Driven Type: AC
- Feature: Explosion-Proof
- Usage: Electric Scissor Lift
- Motor Power: 1.1kw-7.5kw
- Capacity: 300-3000kg
- Material: 345b
- Color: Blue, Yellow or as Your Require
- Trademark: Ruibiao Construction Lifting Hoisting
- Specification: SJG
- HS Code: 84289090

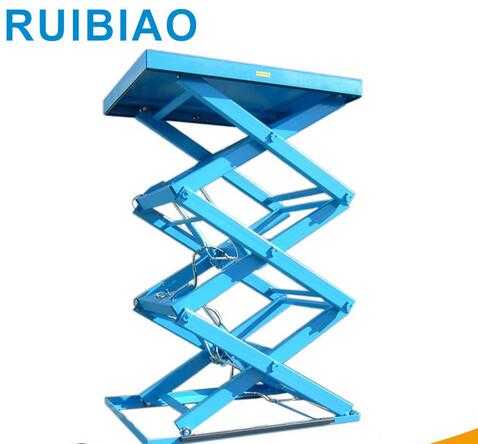

Hydraulic small warehouse electric scissor lift is generally used for lifting cargo and people to working place, loading and unloading goods from ground to underground or other floors. The load capacity is various depending on the different working height from 100kg to 5 tons. Lift height can be 1m to 12m,and table size can be custom-made. The Control system and working voltage can be changed to client's requirements, such 220V,380V,415V,etc.
Specifications- Hydraulic small warehouse electric scissor lift
|
Model
|
capacity
|
Min.height
|
Lifting range
|
Platform size
|
Motor power
|
Self weight
|
|
SJG0.3-3
|
300
|
650
|
3000
|
200*1200
|
1.1
|
780
|
|
SJG0.5-5
|
500
|
850
|
5000
|
2000*1000
|
2.2
|
1200
|
|
SJG1-3.3
|
1000
|
840
|
3300
|
1900*1500
|
3
|
1300
|
|
SJG1-4.3
|
1000
|
860
|
4300
|
2500*2000
|
3
|
2500
|
|
SJG1-6
|
1000
|
1230
|
6000
|
2200*1500
|
2.2
|
2500
|
|
SJG2-3.5
|
2000
|
1000
|
3500
|
2200*1500
|
3
|
1800
|
|
SJG3-4.5
|
3000
|
1060
|
4500
|
2200*1800
|
4
|
2200
|
|
SJG1.5-3
|
1500
|
820
|
3000
|
1800*1200
|
2.2
|
1480
|
|
SJG2-4.8
|
2000
|
980
|
4800
|
2000*2000
|
4
|
2200
|
|
SJG2-6
|
2000
|
1150
|
6000
|
2200*2000
|
5
|
2800
|
|
SJG1-8
|
1000
|
1320
|
8000
|
2200*1800
|
4
|
3000
|
|
SJG2-9
|
2000
|
1400
|
9000
|
2500*1800
|
7.5
|
3800
|
|
SJG2-11
|
2000
|
1900
|
11000
|
2500*1500
|
7.5
|
4100
|
|
SJG3-10
|
3000
|
2100
|
10000
|
2500*1500
|
7.5
|
4300
|
Note: we can design the lifts as your special need.
Pls offer us below information:
1.Capacity
2.Table size
3.Lifting height
4.Any special requirements
