Quick Details
Description
- Model NO.: SJY0.3-12
- Lift Mechanism: Scissor Lift
- Moves: Moving
- Running Mode: Moving
- Certification: ISO 9001
- Color: as Your Require
- Lifting Height: 12000mm
- Usage: Maintenance
- Platform Surface: Checkered Plate or Plain Plate
- Model Number: Sjy0.3-12
- Transport Package: Export Standard Packing
- Origin: China
- Application: Workshop Crane, Warehouse Crane
- Carrying Capacity: Light Level
- Driven Type: AC & DC
- Feature: Explosion-Proof
- Type: 12 Meter Hydraulic Mobile Scissors Car Lift
- Capacity: 300kg
- Material: Steel
- Electric Engine: DC or AC
- Certificate: ISO 9001
- Trademark: Ruibiao
- Specification: as for different models
- HS Code: 8428909090
|
Name
|
12 meter Hydraulic Mobile Scissors Car Lift
|
|
Brand
|
RuiBiao
|
|
Color
|
As your requirement
|
|
Material
|
NBR, SILICONE, VITON, HNBR, CR, PTFE, EPDM, etc. Can choose on your requirement.
|
|
Feature
|
Hot sale
|
|
Packing
|
Wooden case
|
|
Delivery
|
7-15days after receiving T/T payment
|
|
Port
|
Shanghai
|
|
Stock
|
rich,pls confirm with us before ordering
|
|
OEM and ODM
|
welcome
|

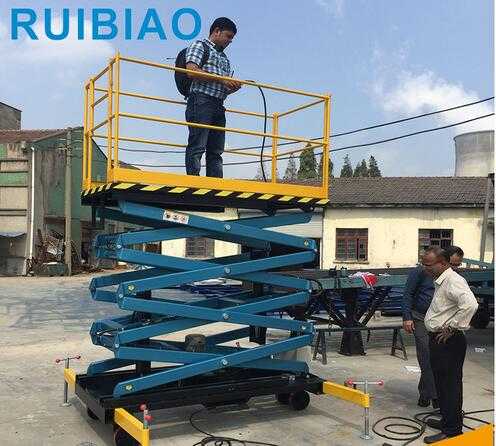

12 meter Hydraulic Mobile Scissors Car Lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Specifications-12 meter Hydraulic Mobile Scissors Car Lift
|
Model
|
Capacity (kg)
|
Max.Height (mm)
|
Min.Height (mm)
|
Platform size(mm)
|
Lifting time (s)
|
Motor power (kw)
|
Weight (kg)
|
|
SJY0.5-3
|
500
|
3000
|
850
|
1300x700
|
16
|
0.75
|
400
|
|
SJY0.5-5
|
500
|
5000
|
950
|
1300x700
|
43
|
0.75
|
620
|
|
SJY0.3-6
|
300
|
6000
|
950
|
1850x880
|
49
|
0.75
|
650
|
|
SJY0.5-6
|
500
|
6000
|
950
|
1850x880
|
54
|
1.1
|
650
|
|
SJY0.3-7.5
|
300
|
7500
|
1250
|
1850x1000
|
65
|
1.5
|
900
|
|
SJY0.5-7.5
|
500
|
7500
|
1350
|
1800x1000
|
72
|
1.5
|
1100
|
|
SJY0.3-9
|
300
|
9000
|
1500
|
1850x1000
|
75
|
1.1
|
1200
|
|
SJY0.5-9
|
500
|
9000
|
1600
|
1800x1000
|
80
|
1.5
|
1260
|
|
SJY0.3-11
|
300
|
11000
|
1600
|
2100x1150
|
83
|
2.2
|
1320
|
|
SJY0.5-11
|
500
|
11000
|
1600
|
2100x1150
|
88
|
2.2
|
1380
|
|
SJY0.3-12
|
300
|
12000
|
1600
|
2450x1350
|
85
|
2.2
|
1700
|
|
SJY0.5-12
|
500
|
12000
|
1800
|
2450x1350
|
90
|
3
|
1850
|
|
SJY0.3-14
|
300
|
14000
|
1800
|
2450x1350
|
98
|
3
|
2200
|
|
SJY0.5-14
|
500
|
14000
|
1980
|
2450x1350
|
120
|
3
|
2500
|
|
SJY0.3-16
|
300
|
16000
|
1980
|
2500x1500
|
130
|
3
|
2680
|
