Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: TIANTI
- Model Number: SJPT03-12
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 3kw
- Rated Loading Capacity: 500kg
- Min. Lifting Height: 1.98m
- Max. Lifting Height: 12m
- Table Size: 1600*750*750mm
- Overall Dimensions: 1900*1020*2000mm
- Weight: 850kg
- Certification: ISO9001:2008 CE Certificate
- Warranty: 1 Year, one years
- After-sales Service Provided: Engineers available to service machinery overseas, Engineers available to service machinery overseas
- Color: Red
- Application: Aerial Work
- Type: hydraulic scissor lift paltform
- Name: Mobile Hydraulic Scissor Lift Platform
- Material: High Strength Manganese Steel
- Voltage: 110v 220v 240v 380v Optional
- Feature: Easy Operation Safety Convenience

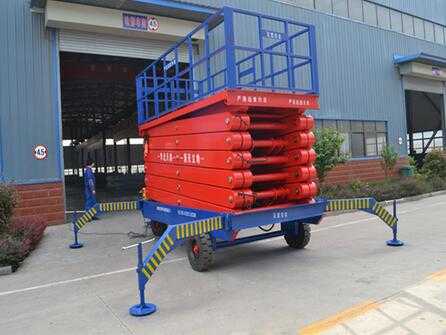

- Product name: 12M skyjack lifts tables Mobile hydraulic scissor lift platform
12M skyjack lifts tables Mobile hydraulic scissor lift platform From China is a kind of widely used aerial working special equipment. The scissor constructure make it more stable when the platform rise and down. The wide operation platform and high load to make the working range greater and for many people at the same time operation.It makes aloft work more efficient and safety more security. It is widely used at station, bridge, hall, indoor plant machinery installation, equipment maintenance, building maintenance.
* Customized 4-20m Lifting Electric Manual Scissor Lift Platform From China for CE choose domestic and Italian hydraulic power unit, the comprehensive performance achieved the international advanced level.
Product application& advantage
1) 12M skyjack lifts tables Mobile hydraulic scissor lift platform From China, with stable and accurate movements, frequent start, load weight, etc.. The platform has higher stability, wide operation platform and large carrying capacity, so that the upper air operating range is larger, and the operation is suitable for many people work at the same time.
2) The control has two ways:manual and electric. Manual pump is equipped for the use in case power is cut off. This series has the following characteristics:flexibly-moving platform, smooth elevation and easy operation. It is mainly applicable to factories, institutions, shops, buildings,decoration, museums and conference centers.
Detailed description
1) 12M skyjack lifts tables Mobile hydraulic scissor lift platform From China The series is manual mobile. The elevating power is two-phase of three- phase.
2) 12M skyjack lifts tables Mobile hydraulic scissor lift platform From China can be in different height work fast, slow, can be in the air to facilitate the operation of the platform to complete the upper and lower, forward, backward, steering and other work, operating height of up to 20 meters, load 300~2000 kg, suitable for the factory floor, square lobby airport, Park and other high demand of the customer.
|
Model
|
Working Height(m)
|
Elevating Height(m)
|
Overall Dimensions L*W*H(mm)
|
Platform Dimensions L*W(mm)
|
Load
(kg)
|
Weight
(kg
|
Power
(kw)
|
|
sjpt03-4
|
6
|
4
|
1900*1020*1750
|
1600*750*750
|
300
|
700
|
2.2
|
|
sjpt03-6
|
8
|
6
|
1900*1020*2000
|
1600*750*750
|
300
|
850
|
2.2
|
|
sjpt05-6
|
8
|
6
|
1900*1020*2050
|
1600*750*750
|
500
|
950
|
2.2
|
|
sjpt03-8
|
10
|
8
|
2330*1400*2400
|
1820*1100*900
|
300
|
1200
|
2.2
|
|
sjpt05-8
|
10
|
8
|
2330*1400*2450
|
1820*1100*900
|
500
|
1300
|
2.2
|
|
sjpt08-8
|
10
|
8
|
2330*1500*2500
|
1820*1100*900
|
800
|
1600
|
3
|
|
sjpt10-8
|
10
|
8
|
2330*1500*2600
|
1820*1100*900
|
1000
|
1700
|
3
|
|
sjpt03-10
|
12
|
10
|
2600*1500*2400
|
2120*1210*900
|
300
|
1500
|
3
|
|
sjpt05-10
|
12
|
10
|
2600*1500*2450
|
2120*1210*900
|
500
|
1600
|
3
|
|
sjpt08-10
|
12
|
10
|
2600*1500*2550
|
2120*1210*900
|
800
|
1800
|
3
|
Jinan North China Elevating Platform Manufacturing Co., Ltd. is located in Jinan, the center of Shandong Province. We are the most professional company in manufacturing hydraumatic elevating platforms. In our company, there is a large amount of advanced production equipment, powerful technical forces, reasonable technological processes, and complete detecting instruments.
SJPT series hydraumatic elevating platforms and HJPT series aluminum alloy elevating platforms are the most advanced products used in aloft works in the world, into which the systems of hydraulic power units from Italy and Germany were introduced, together with the explosion-proof equipment in hydraulic system and hydraulic self-lock equipment from Italy.
The company's "Tianti"brand elevating platform has obtained the trademark certificate issued by the state and its products have acquired the certificate of ISO9001:2000 quality system certification.
