Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: TIANTI
- Model Number: SJPTGD
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 0.5- 120T
- Min. Lifting Height: 1.98m
- Max. Lifting Height: 10m
- Table Size: 3150*1600*1100mm
- Overall Dimensions: 3590*2020*3250mm
- Weight: 3900kg
- Certification: ISO9001:2008 CE Certificate
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Red
- Type: Hydraulic scissor Lift
- Voltage: 220/380v
- Usage: cargo lift for Warehouse Assembly Line
- Platform: Anti-skid Checkered Plate
- Material: High Strength Manganese Steel
- Keywords: Fixed Scissor lift platform
- wind resistance: ≤5 degree
- elevating speed: 4m/min

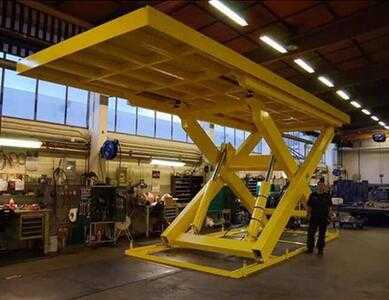

- Product name: Good Quality Electric-Hydraulic Fixed 5 meter Platform Scissor Lift
Good Quality Electric-Hydraulic Fixed 5 meter Platform Scissor Lift for lifting heavy things hydraulic system of our products is generally equipped with anti dropping, overload, power outages and other safety protection device,guide rail type external power unit, import and export table by lanyards or bar, guardrail and a lifting table operation warning lamp or an alarm bell, the door is opened when the lifting table circuit shuts down the safety switch and many other features. Extremely easy to operate the staff of the work layer, multi point control, point move or safe mode operation.
Product Detailed Describe
1)Good Quality Electric-Hydraulic Fixed 5 meter Platform Scissor Lift for lifting heavy things is used for transporting goods between the building floors, It is mainly used in workshop, warehouse, underground garage storage between car lift and other places need to lift goods up and down. Its hydraulic system has fall protection device, overload protection device. emergency falling device when power is off.It has strong structure, large loading capacity, smooth movements, easy to install and maintain, it is economical and practical cargo transportation equipment.
2) Product hydraulic system Best selling fixed scissor lift electric control work platform setting anti fall, overload safety protection device, each floor and lifting platform work table can set the operation button, realize the multi-point control.
3) Good Quality Electric-Hydraulic Fixed 5 meter Platform Scissor Lift for lifting heavy things has strong structure, large load capacity, stable lifting, simple and convenient installation and maintenance, according to the installation environment of the lifting platform and the use requirements, the choice of different optional configuration, can achieve better results.
Main Features
1. Easy operation: this unit can stop at any height needed
2. Antiskid platform: with much more skidproof
3. Convenient use. Outdoor or indoor is OK.
4. Self-lubricating bearing, save maintain cost and time.
5. Emergency decline valve: it can go down when you meet an emergency.
6. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure
