Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Tianti
- Model Number: SJPTZX -08B
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Electric Motor
- Power: 2.2kw
- Rated Loading Capacity: 350kg
- Min. Lifting Height: 1.75m
- Max. Lifting Height: 8m
- Table Size: 2.25*0.75m
- Overall Dimensions: 2.42*0.8m
- Weight: 1804kg
- Certification: ISO9001:2008 CE Certificate
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Yellow
- Application: Aerial Work
- Voltage: Local Voltage
- Battery V/Ah: 4*6/225
- Horizontal extension: 1m
- Lift Motor V/kw: 24/3
- Walking speed: 3.5km/h
- Type: Scissor Hydraulic Lift
- Material: High Strength Manganese Steel

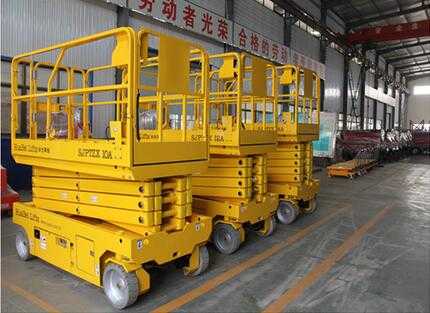

- Product name: Mobile Hydraulic Battery Powered Motorized Scissor Lifting Platform
Mobile Hydraulic Battery Powered Motorized Scissor Lifting Platform has the driving function, and can be controlled by three power supply and battery control. This product uses the high quality structural steel, the single side welding double side forming process, the original imported hydraulic pump station or the domestic joint venture hydraulic pump station, the elevator is equipped with the balance valve, the automatic pressure and so on the safety device, the platform is safe and reliable. The series of elevator has the characteristics of flexible, stable, high load, easy operation and so on. It is widely used in factories, airports, power plants, railway stations, field power and building decoration and other industries.
|
Num
|
SJPTZX-065C
|
SJPTZX-08C
|
SJPTZX-08B
|
SJPTZX-10B
|
|
Working height max (m)
|
6.5
|
7.8
|
8
|
10
|
|
Platform height max (m)
|
4.5
|
5.8
|
6
|
8
|
|
Lift capacity (kg)
|
270
|
230
|
350
|
230
|
|
Platform (l*w) m
|
1.65*0.75
|
1.65*0.75
|
2.25*0.75
|
2.25*0.75
|
|
Wheels base m(f)
|
1.32
|
1.32
|
1.85
|
1.85
|
|
Hydraulic systerm capacity L
|
15
|
15
|
15
|
15
|
|
Weight(ce) kg
|
1164
|
1225
|
1690
|
2010
|
Detailed description
1）Mobile Hydraulic Battery Powered Motorized Scissor Lifting Platform Equipped with an emergency brake system, in case of an emergency can quickly control platform of walking system.The brake, the walking system will automatically without electricity.Ensure the safety of the platform to walk.
2）Equipped with very convenient charging system interface, can be anywhere at any time for charging equipment.
3) Fork scissors mechanism were made with high strength manganese steel rectangle, fully protect the safety of operators.
4) Hydraulic system adopt imitation imported complete hydraulic system into an organic whole, performance is stable.
5) All hydraulic cylinder inlet equipped with hydraulic oil pipe and oil return valve, even if the blowout platform operators also won't produce risk.
6) Itself has the steering and drive systems, are designed for the button control, convenient operation and reliable.
7) Internal installation has a battery as a power, without external power supply.
8) Working outdoors without artificial or vehicle traction.
Jinan North China Elevating Platform Manufacturing Co., Ltd. is located in Jinan, the center of Shandong Province. We are the most professional company in manufacturing hydraumatic elevating platforms. In our company, there is a large amount of advanced production equipment, powerful technical forces, reasonable technological processes, and complete detecting instruments.
SJPT series hydraumatic elevating platforms and HJPT series aluminum alloy elevating platforms are the most advanced products used in aloft works in the world, into which the systems of hydraulic power units from Italy and Germany were introduced, together with the explosion-proof equipment in hydraulic system and hydraulic self-lock equipment from Italy.
The company's "Tianti"brand elevating platform has obtained the trademark certificate issued by the state and its products have acquired the certificate of ISO9001:2000 quality system certification.
