Quick Details
Description
- Place of Origin: Henan, China (Mainland)
- Brand Name: SINOGEARS
- Model Number: SJD
- Lift Mechanism: Lift Chain
- Lift Drive / Actuation: Electric Motor
- Power: 1.5kW
- Rated Loading Capacity: 3000kg
- Min. Lifting Height: 4.5m
- Max. Lifting Height: 14m
- Table Size: 800*1000 - 3000*5000 mm
- Overall Dimensions: customization
- Weight: 1200kg
- Certification: ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Optional

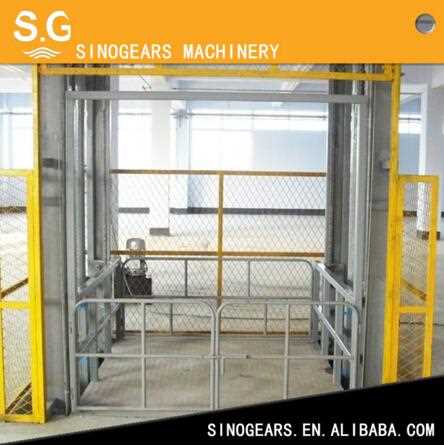

The rail type elevator has one column, two columns, or four columns. It works smoothly and easy to operate. Now it’s the best choice for goods or cargo lifting. The guide rail type lift platform is a another often used hydraulic lifting platform besides the scissors-fork type lift.
Since the minimum height of this kind lift guide rail elevator is 150-300mm, and it doesn’t need any hanging device, it’s very appropriate for working places where can’t be dug for groundwork, such as industrial factory, restaurant, hotel and so on.
In order to save your time, we need you to help us provide following information:
1. Which kind of elevator or lift do you need?
2. FOB or CIF price?(If CIF price, please advise your destination port)
3. Quantity?(sets or pieces)
4. What's the ideal lifting capacity, lifting height and platform size?
5. What's the working voltage(V,HZ,Phase)?
6. Material need?
7. How many hours the machine works one day.
8. Any other requirements do you need?
|
Model
|
Loading Capacity
|
Vertical Travel
|
Min Height
|
Platform Size
|
Power Rate
|
|
SJD0.3-4.5(1-2Floor)
|
300
|
4500
|
150
|
1000X800
|
1.5
|
|
SJD0.5-4.5(1-2Floor)
|
500
|
4500
|
150
|
1500X1000
|
1.5
|
|
SJD1.0-4.5(1-2Floor)
|
1000
|
4500
|
150
|
1500x1500
|
2.2
|
|
SJD2.0-4.5(1-2Floor)
|
2000
|
4500
|
150
|
2000X1000
|
2.2
|
|
SJD3.0-4.5(1-2Floor)
|
3000
|
4500
|
150
|
2000X1200
|
3
|
|
SJD0.3-7.5(1-3Floor)
|
300
|
7500
|
150
|
1000X1000
|
1.5
|
|
SJD0.5-7.5(1-3Floor)
|
500
|
7500
|
150
|
1200X1200
|
1.5
|
|
SJD1.0-7.5(1-3Floor)
|
1000
|
7500
|
150
|
1800X1400
|
2.2
|
|
SJD2.0-7.5(1-3Floor)
|
2000
|
7500
|
150
|
2000X1500
|
2.2
|
|
SJD3.0-7.5(1-3Floor)
|
3000
|
7500
|
160
|
2000X1600
|
3
|
|
SJD1.0-10.5(4Floor)
|
1000
|
10500
|
150
|
1800X1400
|
2.2
|
|
SJD1.0-14(5Floor)
|
1000
|
14000
|
150
|
1800X1500
|
2.2
|
|
SJD3.0-4.5(For Cars)
|
3000
|
4500
|
160
|
5000X3000
|
4
|
