Quick Details
Description
- Place of Origin: Henan, China (Mainland)
- Brand Name: SINOGEARS
- Model Number: SJY
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 1000kg
- Min. Lifting Height: 4m
- Max. Lifting Height: 14m
- Table Size: 1700*1080 - 2700*1300 mm
- Overall Dimensions: customization
- Weight: 2400kg
- Certification: ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Optional

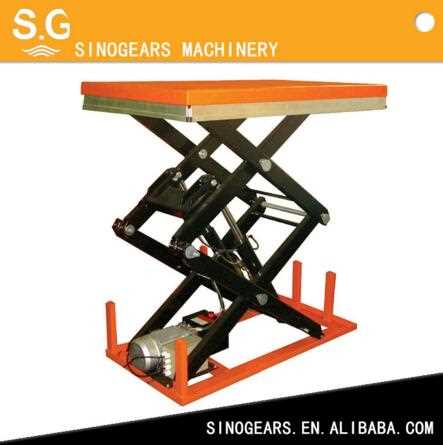

SYJ hydraulic scissor lifts are the industry solution for increasing worksite productivity. Ideal for maneuvering in tight spaces, they’re excellent for indoor and outdoor construction, maintenance and installation applications with high level surfaces. Characterized by low noise levels, these lifts provide excellent capacity and large platform workspace.
A scissor lift is a type of platform that can usually only move vertically. The mechanism to achieve this is the use of linked, folding supports in a criss-cross "X" pattern, known as a pantograph (or scissor mechanism). The upward motion is achieved by the application of pressure to the outside of the lowest set of supports, elongating the crossing pattern, and propelling the work platform vertically.
In order to save your time, we need you to help us provide following information:
1. Which kind of hydraulic scissor lift do you need?
2. FOB or CIF price?(If CIF price, please advise your destination port)
3. Quantity?(sets or pieces)
4. What's the ideal lifting capacity, lifting height and platform size?
5. What's the working voltage(V,HZ,Phase)?
6. Material need?
7. How many hours the machine works one day.
8. Any other requirements do you need?
|
Model
|
Raising Height (m)
|
Max Load (kg)
|
Platform Size (mm)
|
Machine Size (mm)
|
Power (kW)
|
Total Weight (kg)
|
|
SJY0.3-4
|
4m
|
300
|
1700 x 1080
|
1820 x 1400 x 1180
|
2.2
|
750
|
|
SJY0.3-6
|
6m
|
300
|
1700 x 1080
|
1820 x 1400 x 1280
|
2.2
|
850
|
|
SJY0.3-8
|
8m
|
300
|
1800 x 1060
|
1900 x 1380 x 1460
|
2.2
|
950
|
|
SJY1.0-8
|
8m
|
1000
|
1800 x 1300
|
1920 x 1630 x 1980
|
2.2
|
1450
|
|
SJY0.3-10
|
10m
|
300
|
1920 x 1300
|
2040 x 1580 x 1660
|
2.2
|
1400
|
|
SJY1.0-10
|
10m
|
1000
|
1920 x 1300
|
2060 x 1630 x 1980
|
3.0
|
1600
|
|
SJY0.3-12
|
12m
|
300
|
2400 x 1300
|
2530 x 1630 x 1980
|
2.2
|
1650
|
|
SJY1.0-12
|
12m
|
1000
|
2400 x 1000
|
2530 x 1630 x 1980
|
3.0
|
1800
|
|
SJY0.3-14
|
14m
|
300
|
2700 x 1300
|
2800 x 1660 x 2080
|
3.0
|
2400
|
Zhengzhou Sinogears Machinery Co., Ltd is an experienced enterprise which is integrated with design, manufacturing, sales and OEM services. Our business scope reaches to many industrial fields including crane industry, automobile manufacturing, municipal engineering, environmental engineering and so on.
We have been exporting hoists, single girder cranes, jib cranes, good lifts, lifting platforms, electric flat carriages to many countries all over the world, all receiving good feedback. Also many other products enjoy highly praise globally too, such as shock absorbers, brake system, clutch kits, filter elements for cars, and road pavers, brick making machines, mortar sprayer for constructions.
