Application

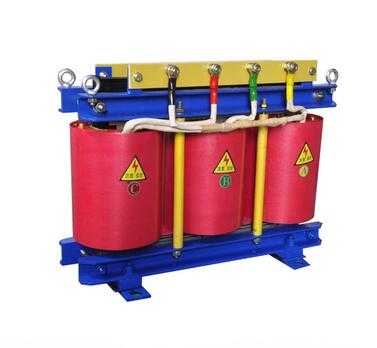

SC(B)10 series three phase resin-cast dry-type distribution transformer are in conformity with standard of IEC76,with features of low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial building,
stadiums,chemical plants,stations,aiports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements
Standard
IEC60076,ANSI/IEEEC57.12.00, C57.12.20, C57.12.90, BS171, SABS 780 etc
Advantage
High reliability feature:
- Flame resistant
- Low noise
- lEnergy saving
- lCompact size
Service condition
a) Suitable for indoor or outdoor application
b)Air temperature:
Maximum temperature: +40℃; Minimum temperature:-30℃
c) Humidity:
Monthly average humidity 95%; Daily average humidity 90%.
d) Altitude above sea level:
Maximum installation altitude: 2000m.
e)Max wind speed:35M/s
f) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
g) No frequent violent shake
Note: * Beyond those services condition should enquiry to manufacturer technical dept during order
