Quick Details
Description
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: BoCheng
- Model Number: SG
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: according to practical demands
- Rated voltage: 100VA~800KVA
- Frequency: 50Hz/60Hz
- Input voltage: Rated Voltage+-10%
- Output voltage: Rated Voltage +5% (no-load )
- Efficient: ≥95%
- Rated capacity: 500VA-500KVA
- Color: Grey
- Certification: RoHs CE ISO9001
- Standard: IEC60076

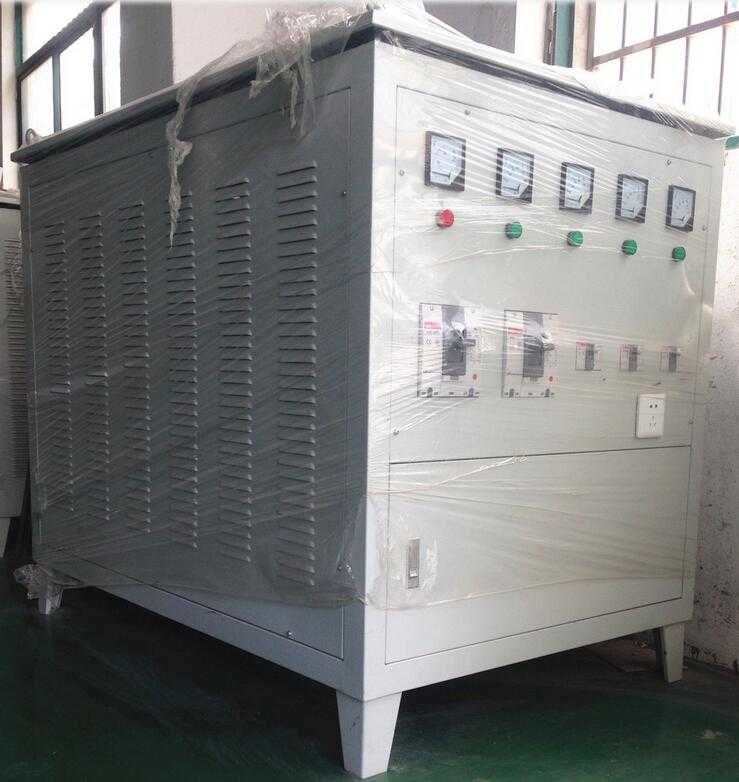

- Product name: Dry Type Transformer
Product Application
Using high quality materials and advanced technology professional production of 100 VA to 800 KVA, it’s dampproof, easy operation and simply maintenance. can further load center, Be widely used in subway, buildings, airports, railway stations, docks, business building,tunnel where need power transmission and distribution.Three Phase Dry Type Transformer Outline and installation dimensions standardization. Widely used in all kinds of three-phase power supply place with AC 50/60 HZ, input and output voltage not exceeding 500V . All of the details can be meticulous design and produce ,such as input and output of the high and low voltage, link categories, adjust the number and location of tap, distribution of winding capacity,the The equipped with secondary three-phase winding, the use of rectifier circuit, with shell or not . etc.
Main Features
1) High isolation.
2) N-G excellent conversion.
3) High common-mode electromagnetic interference.
4) Transform Δ to Y or Y to Δ.
5) The voltage tap easy conversion.
6) Can design according to customers special performance requirements ！
|
Practical altitude:
|
≤5000m.
|
|
Environmental temperature:
|
15 ℃ ~ 45 ℃.
|
|
Relative humidity:
|
≤90%.
|
|
Installation:
|
Installation site should be no harmful gas, steam and electrical conductivity or explosive dust.
|
|
Notice:
|
Do not meet above conditions of use, should be negotiated with us.
|
