Quick Details
Description
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: BoCheng
- Model Number: DG
- Usage: Power
- Phase: Single
- Coil Structure: Toroidal
- Coil Number: According to customer requirements
- Efficiency: ≥95%
- Certification: CE/ROHS/CESI/ CTQC
- Standard: IEC60076, GB1094-1996; JB/T10088-2004
- Frequency: 50/60Hz
- Insulation grade: F and H
- Max temperture rise: < 60
- Environmental temperature: -15 ℃ ~ 45 ℃
- Waveform distortion: < 0.1%
- Working site: Indoor
- Advantages: Customer's Requested Specifications

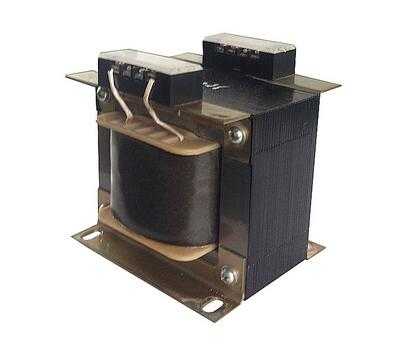

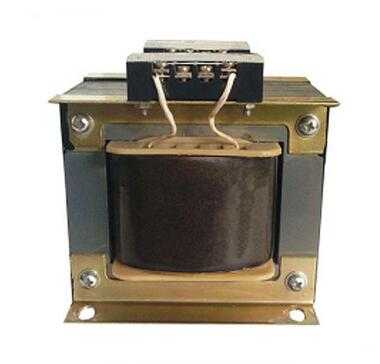

Application：DG single phase dry type control transformer is suitable for circuit of 50~60Hz, The input voltage single-phase 380V/ 400V/415V/440V/460V/550V, usually applied as power supply for machine tool electrical appliances, local lightings and indicator lamps .
All of the details can be meticulous design and produce ,such as input and output of the high and low voltage, link categories, adjust the number and location of tap, distribution of winding capacity,the The equipped with secondary three-phase winding, the use of rectifier circuit, with shell or not . etc .
DG single phase dry type control transformer apply to Industrial and mining enterprises, ultra-precision CNC machine tool, power station, airports, high-rise buildings, subway and other places of fire safety requirements higher.Transforming voltage for lighting electrical facilities, power supply and rectifier power.
|
Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
|
|
Altitude for installing place should not exceed 1000m;
|
|
When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration
|
