Quick Details
Description
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: BoCheng, BoCheng
- Model Number: SG, SG
- Usage: Electronic
- Phase: Three
- Coil Structure: Toroidal, Toroidal
- Coil Number: Autotransformer

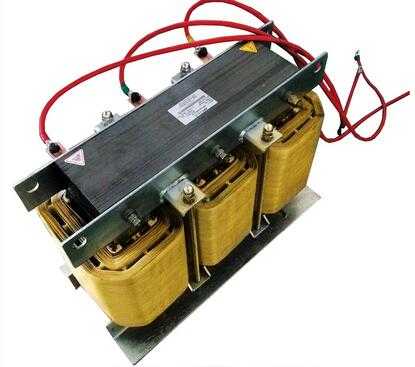

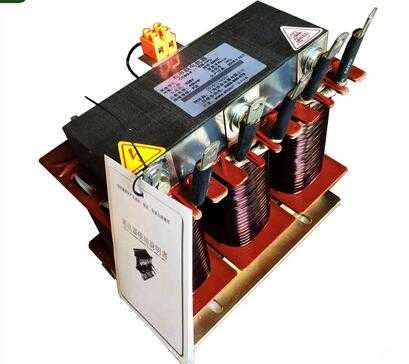

- Product name: SG 3 Phase Dry Type Isolating Transformer
- Waveform distortion: < 0.1%
- Insulation grade: F and H
- Certification: ISO & CE
- Applicable altitude: ≤5000m
- Efficiency: ≥95%
- Frequency: 50/60Hz
Product Application
SG Three Phase Dry Type Isolating Transformer is we reference to the international products, develop and produce new generation of energy-saving power transformer, from 300 VA to 1600 KVA .Meet the standards of IEC439、GB5226 international and national standards,winding adopt spun out of the whole column winding method ,Transformer in vacuum varnished, make the transformer insulation grade achieve F or H, product performance reach the advanced level at home and abroad.SG Three Phase Dry Type Isolating Transformer is widely used in AC 50 HZ to 60 HZ.Under the circuit of voltage 660V was widely used in import important equipment, precision machine tools, machinery and electronic equipment, medical equipment, rectifying device, lighting, etc.All of the details can be meticulous design and produce ,such as input and output of the high and low voltage, link categories, adjust the number and location of tap, distribution of winding capacity,the The equipped with secondary three-phase winding, the use of rectifier circuit, with shell or not . etc .
Product Features
Establish a new mid-line earthed in the isolating transformer can remove the common code interference and other mid-line interference in the grid.Isolating transformer converts three line △ connection to four line Yo system.Add shield can be further remove high frequency pulse interference and noise by transformer internal coupling , although a isolation transformer with shield can effectively avoid variety of N - G interference (pulse and high frequency noise), but the transformer must be grounded properly and correctly ,It is very strict, otherwise the resistance to common mode interference will have no effect.We can design and production high quality isolating transformer for customers.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
Use condition
1, Applicable altitude: ≤5000m.
2, Environmental temperature: -15 ℃ ~ 45 ℃.
3, Relative humidity: ≤90%.
Advantages
High isolation.
N-G excellent conversion.
High common-mode electromagnetic interference.
Transform Δ to Y or Y to Δ.
The voltage tap easy conversion.
Can design according to customers special performance requirements
Specifications
1, Input rated voltage: three-phase 380V or single-phase 380V or single-phase 220V
2, Working frequency :50HZ - 60HZ
3, Efficiency: ≥95%
4, Temperature rise: < 60
5, Waveform distortion: < 0.1%
6, High voltage test: 2500V, 1 minute without breakdown
7 ,Insulation resistance: winding insulation resistance to earth ≥500MΩ
Primary to secondary insulation resistance ≥500MΩ
Shanghai BoCheng Electrical Hardware Factory professional manufacturer of APF(Active power filter)and STATCOM(Static synchronous compensator).Which was established in 2001,and located at Shanghai city in China.The production bases of BoCheng factory cover about 12000 square meters and are consisted with 3 parts,which are Shanghai BoZhou Electric Co., Ltd,Shanghai LiangKen Electric Co., Ltd,Shanghai BoCheng Electric Co., Ltd .BoCheng has more then 25 technicians staffs and international standard test equipment.And thanks to the high quality research and development groups,experienced electrical and mechanical engineers,advanced machining bases and qualified workshops of the factory.Our main control system adopt German infineon,control module adopt schneider,silicon steel core adopt imported high grade silicon steel sheet and oriented silicon steel sheet.We are focus on the core components and complete set of high and low voltage reactive power compensation equipment research and development production, to fully meet customer reactive power compensation,harmonic control,etc.
Main products:Active Power Filter (APF),Static Synchronous Compensator (STATCOM),APFC,Capacitor Compensation Cabinet(SVC),high and low voltage Power Transformer,Power Reactor, Silicon-controlled Switch,shear and stamping production Silicon Steel Sheet and Electrical Steel,processing business,etc.
As lead-edge technologies electrical optimum choice,has been widely used in military installations,electric system,new energy,communications equipment,rail transit ,airport ,financial and securities ,medical treatment ,and intelligent building field,providing the most reliable electricity security and the best solution of energy efficiency.
We have long term cooperation customers more than hundred at home and abroad,60% export,Due to our advanced technology, high performance products,first-rate quality, reasonable prices and comprehensive after sales services offers,
We enjoy an outstanding reputation among clients both at home and abroad.We have build up good credit standing in our
customers ,and well appraised in chemical plant, machine, electric power ,electronic and automotive.Enjoy the domestic and foreign chemical plant,steel plant, hospital,shipyard,real estate and high and low voltage complete set factory.
"Quality First,Customer Supreme" is our business principle and eternal promise to customers.
Today, no matter in the international market and China market, with unprecedented speed rapid electric industry growth.In the future, BoCheng will focus on the global market, expand service scope,Insist on the new product research and development,introduction of advanced equipment, keep pace with the world.With customers hand in hand build a perfect electric world.
We sincerely welcome customers worldwide to cooperate with us to develop rewarding business partnerships.
