Quick Details
Description
- Condition:New
- CNC or Not:Normal
- Power Source:Hydraulic
- Place of Origin:Shanghai, China (Mainland)
- Brand Name:EMM
- Model Number:Q35Y-30
- Voltage:380V
- Power(W):5.5kw
- Weight:6600KGS
- Dimension(L*W*H):2680x1060x2300
- Certification:ISO9001
- Warranty:1 Year
- After-sales Service Provided:Engineers available to service machinery overseas
- Brand:Extreme Machinery Manufacture(EMM)

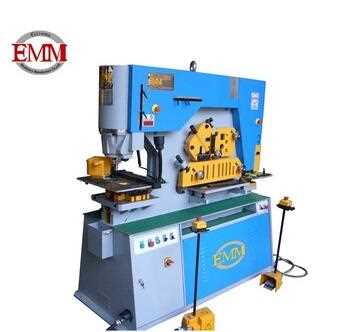

- Product name:Q35Y-30 Hydraulic ironworker machine
- Application:Metal Forming
- Function:Metal Processing
- Usage:General
- Model:Q35Y-30
- Color:Blue
- Material:Steel Material
- Keyword:Metal Shearing Ironworker
- Type:Multi-Function Machine
A hydraulic ironworker can be used for punching, shearing, notching, bending and other metal fabricating functions. EMM’s special tooling department can design any special tool you need for your metal fabricating needs.
|
Specification
|
Q35Y-30
|
|
Punching station
|
|
|
Punching maximum capacity
|
38x30
|
|
Stroke Ram length
|
80
|
|
Deep Throat Standard
|
600
|
|
Punching Largest hole (Optional)
|
160
|
|
Working height
|
1209
|
|
Shearing
|
|
|
Flat Plate Shearing Maximum
|
355x30
|
|
Flat Plate Shearing Maximum
|
600x20
|
|
Blade length
|
610
|
|
Angle Flange Trim Maximum 45°
|
100x16
|
|
Working Height
|
900
|
|
Angle Cutting Station
|
|
|
90° Miter (True Interior /Exterior )
|
180x16
|
|
45° Miter (True Interior /Exterior )
|
70x10
|
|
Working Height
|
1220
|
|
Section Cutting Station
|
|
|
Round Bars/ Square Bars Maximum Diameter
|
65/55
|
|
Channel /I Beams ( Optional )
|
280x86
|
|
Tee ( Optional )
|
90x12
|
|
Notching Station
|
|
|
Material thickness
|
16
|
|
Width - Rectangle
|
57
|
|
Depth - Rectangle
|
60-90
|
|
Angle Flange – Maximum Profile
|
100x16
|
|
Working Height
|
900
|
