Quick Details
Description
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:EMM
- Model Number:EMS21-16
- After-sales Service Provided:Engineers available to service machinery overseas
- Die Height Adjustment(t):45mm

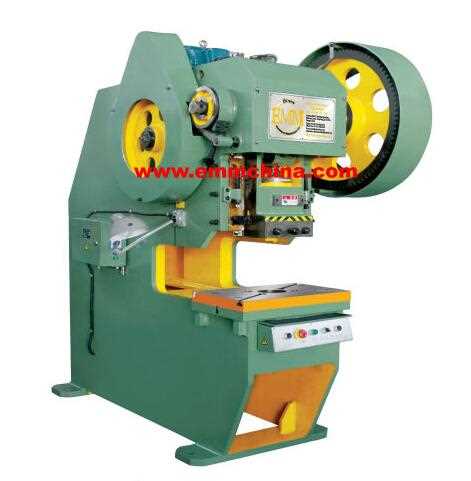

EMS21 series of press machine deepens the throat, and its throat depth is four times of that of common machine. The EMS21 series has large work space, and it can finish the forming in one punch without turning around. It is widely used for the machining of large size plates, and all the EMS21 series adopt steel plates welded machine body with high strength and rigidness, and adopt the rigid rotating key type clutch which is convenient to operate and service, the machine has reliable performance and works smoothly.
Technical Data:
|
Item
|
Unit
|
EM21S-16
|
|
Nominal capacity(Pe)
|
KN
|
160
|
|
Nominal pressure stroke(Sp)
|
mm
|
2
|
|
Slider stroke(S)
|
mm
|
55
|
|
Slider stroke per minute(n)
|
times/min
|
125
|
|
Max. Die set height(H2)
|
mm
|
220
|
|
Die Height Adjustment(t)
|
mm
|
45
|
|
Distance between slider center and machine(C1)
|
mm
|
500
|
|
Vertical columns distance(d1)
|
mm
|
250
|
|
Slider bottom size
|
L×R(a)
|
mm
|
200
|
|
F×B(b)
|
mm
|
180
|
|
Size of stemhole
|
Diameter(d)
|
mm
|
40
|
|
Depth(I)
|
mm
|
60
|
|
Size of worktable
|
L×R(C)
|
mm
|
450
|
|
F×B(D)
|
mm
|
300
|
|
Blanking hole diameter(Φ)
|
mm
|
100
|
|
Thickness of worktable(H3)
|
mm
|
40
|
|
Worktable height from ground(H1)
|
mm
|
750
|
|
Overall size
|
L×R(A)
|
mm
|
1480
|
|
F×B(B)
|
mm
|
850
|
|
Height(H)
|
mm
|
2030
|
|
Anchor bolts distance
|
L×R(a’)
|
mm
|
940
|
|
F×B(b’)
|
mm
|
490
|
|
Power of electric motor
|
kw
|
1.5
|
|
Weight(Approximate)
|
kg
|
2000
|
