Quick Details
Description
- Condition:New
- CNC or Not:CNC
- Power Source:Hydraulic
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:EMM
- Model Number:EMM60
- Voltage:Customized
- Power(W):7KW
- Weight:5.4T
- Dimension(L*W*H):1530mm*1600mm*2900mm
- Certification:ISO CE Certificates
- Warranty:12 Months
- After-sales Service Provided:Engineers available to service machinery overseas, Engineers available to service machinery overseas
- Keyword:Automatic Punching Machine
- Model:Hydraulic Pipe Tube Hole Punching Machine

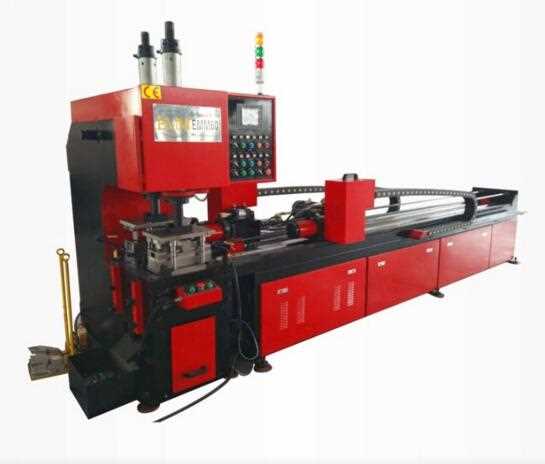

- Product name:EMM60 aluminum window and door punching machine
- Function:Punching
- Feeding the fastest servo speed:2100mm/s
- Usage:Punching Effectively
- Material:stainless steel tube
- Type:hole punching machine for pipes and tubes
- Application:window and door and fence
|
Hole punching machine
|
EMM50
|
EMM50A
|
EMM50B
|
EMM60
|
EMM60A
|
EMM60B
|
EMM60C
|
|
Name
|
Single line
|
Single line(with 360 rotation)
|
Single line(with push rod function)
|
Dual line
|
Dual line(with 360 rotation)
|
Dual line(with push rod function)
|
Dual line(with 360 rotation and 360 rotation)
|
|
Workpiece
|
round,square,rectangular,oval,special pipe and various holes(according to detailed drawing)
|
|
Material
|
All kinds of iron, aluminum, copper, stainless steel…
|
|
Hole diameter and thickness
|
Φ50×τ3~~~~~Φ16×τ11mm
|
|
Pipe diameter
|
Round pipe
|
Φ16-----Φ120 mm
|
|
Square pipe
|
20×20-------75×75 mm
|
|
Rectangular pipe
|
15×30-------60×120 mm
|
|
Angle iron
|
30×30--------75×75mm
|
|
Channel
|
25×50--------60×120mm
|
|
Processing length
|
3500mm /6000mm
|
|
Max servo feeding speed
|
50000mm/min
|
|
processing categories
|
Single punching,Not equidistant punching,Isometric punching,360°rotation punching
|
Product Features of hole punching machine steel EMM60
Our machine is adopted with Japan-made serve motor driving devices and the feedin
and receiving speed can be set to high speed and high precision to enhance the productivity.
*It is featured with sufficient clamping force of clamping oil cylinders and the position of work
pieces is stable and uneasily loose off.
*Whenever the oil cylinder is moving downward, the machine is designed with hydraulic
difference driving loops rated at high or low RPM .It is also featured with high speed downward
moving, low speed processing and hi- speed position resume .It is available to increase the formation
stability of work pieces during puncturing .In addition to increasing the activation speed, it can
effectively reduce HP lead to save electrical energy.
*The electrical control system is designed with human machine interface 150mm
(Stroke available for positioning) the mold set is designed with 600mm in depth available for
forward and backward 150mm moving accessibility Our machine is designed with the Italy-made
digital scale (LCD display) with high precision.
Automatic feeding: One worker start the double line at the same time, if the tubes with standard
size, the worker operated without any mistake, it only need about one minute punch one pipe.
Artificial feeding: two workers operate one line separated, if the tubes with standard size, the
worker operated without any mistake, it need about five minute can punch one pipe.
