We are a professional liquid/beverage filling machine (such as: drinking water, beverage, wine, tea etc.) company located in Zhangjiagang City, Jiangsu Province, China. 2 hours driving from Shanghai.
Our machines are suitable for PET bottles, glass bottles, round, square and flat bottles, cans etc. The packaged liquid range among wine, fruit juice, tea, milk, soft drink, pure water, mineral water and so on.
Over 10 years development, we can now provide several complete filling assembly lines.
A. Pure water or mineral water filling line
B. Fruit juice hot filling line
C. Carbonated beverage (soft drink) filling line
D. Barreled water filling line
E. Wine, alcohol and beer filling line
F. Tea filling line
Introduction:

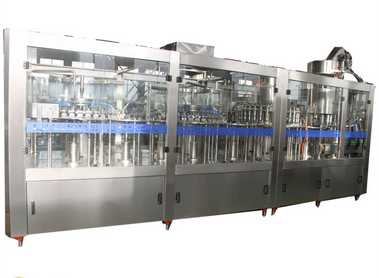

The series equipment is used for the production of green tea,black tea and fruit juice. It integrates washing ,filling,capping together.The design is scientific and reasonable. Its appearance is beautiful, operation and maintenance is convenient.
Features:
1.Complete juice production line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
2.To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate.
3.The parts contacting media are made from stainless steel and have no process blind angles to enable easy cleaning.
4.juice hot filling machine is used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
5. Filling Machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
6.The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
7.The advanced Siemens programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
Technical parameter:
| Model |
RGZ12-12-6 |
RGZ18-18-6 |
RGZ24-24-8 |
RGZ32-32-8 |
| Production Capacity(600ml)(b/h) |
2500 |
3500-4000 |
5000-6000 |
8000-10000 |
| Way of Filling |
gravity filling technology |
| Filling Precision |
Liquid level from the bottle
≤5mm |
| Feedback Consumption |
≤10% |
| Polyester Bottle Standard(mm) |
(Bottle Diameter)50-92;(Height):150-310 |
| Suitable Cap Shape |
(Plastic Screw Cap) |
| Water Pressure of Washing Bottle(Mpa) |
0.18 |
| Water Consumption for Water Bottle(Kg/h) |
800 |
1600 |
2500 |
3500 |
| Gas Cource Pressure(Mpa) |
0.6 |
| Gas Consumption(m3/min) |
0.3 |
0.3 |
0.4 |
0.5 |
| Total Power(kW) |
5.88 |
6.68 |
7.68 |
9.18 |
| Total Weight(Kg) |
2500 |
3000 |
4000 |
5000 |
| Dimension(L×W×H)(mm) |
2300×1550×2200 |
2640×1600×2200 |
3250×2150×2250 |
3600×2200×2250 |
Zhangjiagang City Bievo Machinery Co., Ltd. is a professional food and beverage machinery manufacturer. Bievo has its own special advantages in the research, design and manufacture, and offers technical support to customers. We also provide perfect after-sales service.
Our Beverage Machinery includes carbonated soft drink production lines; Non-aerated beverage bottled filling production lines and juice/tea beverage/wine bottled/barreled filling production lines. You are welcome to cooperate with us.
What we supplies:
Middle and small size mineral water and pure water canned production lines. The output is 2, 000 to 36, 000 bottles one hour.
Juice and tea beverage machinery hot filling production lines. The output is 2, 000 to 36, 000 bottles one hour.
Carbonated beverage machinery press filling production line. The output is 2, 000 to 30, 000 bottles one hour.
Soy sauce, vinegar, edible oil filling production line. The output is 2, 000-12, 000 one hour.
3, 5-gallon barreled drinking water production line. The output is 60 -1200 barrels one hour.
One gallon bottled drinking water production line. The output is 600-1200 bottles one hour.
Soy milk, peanut milk beverage (machinery) production line. The output is 0.5-20T one hour.
Compound fruit and vegetable juice/powder processing equipment. The output is 1 to 20 tons one hour.
Edible oil exclusive packaging production lines.
Beverage machinery preprocessing equipment.
Water treatment (mineral water, purified water, food process water) equipment. The output is 2-20T one hour.
Related equipment: Bottle unscrambler, reversing bottle machine, spraying cold machine, enrichment equipment, CIP cleaning machine, UHT instantaneous sterilizer, labeling machine, blow molding machine.
