Quick Details
Description

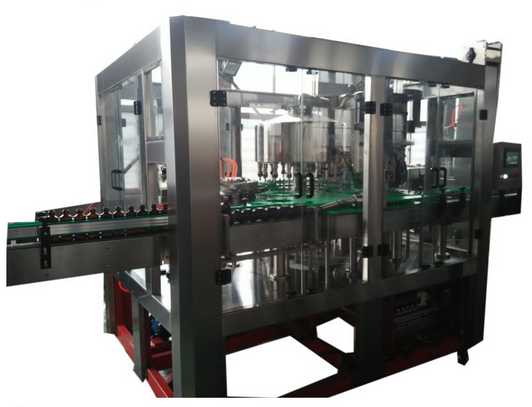

The machine is for filling green tea,black tea and fruit juice drink and integrates washing,filling and capping together ,and adopts block bottle-neck hanging work state design and filling valve rise-drop design.
It can meet the requirements of hot filling of below 95 degrees Celsius. It adopts man-machine interface touch screen,PLC,transducer ,etc.
1.Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine. Simply adjust the conveyor of different bottle height and a small amount of change attachment, so for bottle faster, and effort.
2. Filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.
3.Juice Filling Machine:Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.
4. The Juice Filling Machine main electrical, pneumatic components are imported components.
5. The frequency changing technology is used to adjust the operation speed. The production capacity can be displayed digitally and can be adjusted conveniently.
Technical parameter:
| Model |
RGZ-G12-12-6 |
RGZ-G18-18-6 |
RGZ-G24-24-8 |
RGZ-G32-32-8 |
| Production Capacity(600ml)(b/h) |
2000 |
3000-3500 |
4500-5500 |
7500-9500 |
| Way of Filling |
gravity filling technology |
| Filling Precision |
Liquid level from the bottle≤5mm |
| Feedback Consumption |
≤10% |
| Polyester Bottle Standard(mm) |
(Bottle Diameter)50-92;(Height):150-310 |
| Suitable Cap Shape |
(Plastic Screw Cap) |
| Water Pressure of Washing Bottle(Mpa) |
0.18 |
| Water Consumption for Water Bottle(Kg/h) |
800 |
1600 |
2500 |
3500 |
| Gas Source Pressure(Mpa) |
0.6 |
| Gas Consumption(m3/min) |
0.3 |
0.3 |
0.4 |
0.5 |
| Total Power(kW) |
5.88 |
6.68 |
7.68 |
9.18 |
| Total Weight(Kg) |
2500 |
3000 |
4000 |
5000 |
| Dimension(L×W×H)(mm) |
2300×1550×2200 |
2640×1600×2200 |
3250×2150×2250 |
3600×2200×2250 |
Zhangjiagang City Bievo Machinery Co., Ltd. is a professional food and beverage machinery manufacturer. Bievo has its own special advantages in the research, design and manufacture, and offers technical support to customers. We also provide perfect after-sales service.
Our Beverage Machinery includes carbonated soft drink production lines; Non-aerated beverage bottled filling production lines and juice/tea beverage/wine bottled/barreled filling production lines. You are welcome to cooperate with us.
What we supplies:
Middle and small size mineral water and pure water canned production lines. The output is 2, 000 to 36, 000 bottles one hour.
Juice and tea beverage machinery hot filling production lines. The output is 2, 000 to 36, 000 bottles one hour.
Carbonated beverage machinery press filling production line. The output is 2, 000 to 30, 000 bottles one hour.
Soy sauce, vinegar, edible oil filling production line. The output is 2, 000-12, 000 one hour.
3, 5-gallon barreled drinking water production line. The output is 60 -1200 barrels one hour.
One gallon bottled drinking water production line. The output is 600-1200 bottles one hour.
Soy milk, peanut milk beverage (machinery) production line. The output is 0.5-20T one hour.
Compound fruit and vegetable juice/powder processing equipment. The output is 1 to 20 tons one hour.
Edible oil exclusive packaging production lines.
Beverage machinery preprocessing equipment.
Water treatment (mineral water, purified water, food process water) equipment. The output is 2-20T one hour.
Related equipment: Bottle unscrambler, reversing bottle machine, spraying cold machine, enrichment equipment, CIP cleaning machine, UHT instantaneous sterilizer, labeling machine, blow molding machine.
