Quick Details
Description
ype:Multi-Function Packaging Machine, Special
Condition:New
Function:Wrapping
Application:Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:Film
Packaging Material:Plastic
Automatic Grade:Automatic
Driven Type:Electric
Voltage:220V
Power:2.4KW
Place of Origin:Zhejiang, China (Mainland)
Brand Name:HAICHINA
Model Number:DZP-250C
Dimension(L*W*H):3950*650*1550mm
Certification:CE,ISO
After-sales Service Provided:Engineers available to service machinery overseas
High quality:good performance
PLC control:Running automatic
Cakes Packaging Machine:pack cakes, muffins, bread, biscuit
constructed in 304 Stainless Steel:Fix to GMP standard, easy to clean
High speed:up to 230 pcs/min
Economics:economic price
ISO 9001: 2000:CE
Usage:Outer
Use

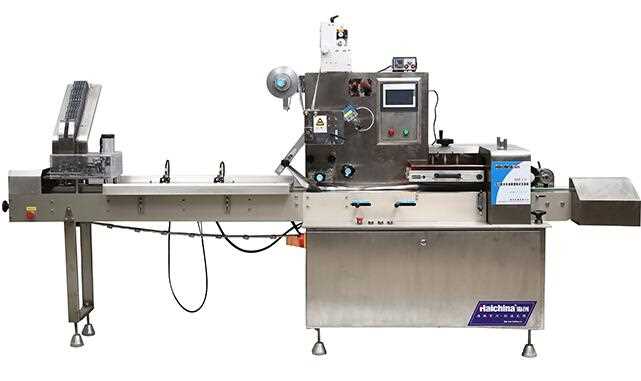

DZP-250C multifunctional automatic high speed pillow packing machine is mainly applicable to medicine, food and other industries using aluminum plastic packaging plates and effervescent tablets, large infusion, analgesic cream packaging, etc..
It has the functions of dampproof, dustproof and avoiding light, and improves the product grade and additional value. The machine can save more than 20% of the cost compared with the manual bag making packaging, and can also be linked with the aluminum plastic packaging machine, heat shrinkable packaging machine and other mechanical production.
Features
1.Compact structure, stable and advanced performance, easy for operation.
2.Double frequency convert motor, and stepless variable speed, and the length of bag can be set on PLC, and cutting will be reaction instant, just one step, and save the time and film.
3.Adopt international famous electric components, PLC control, friendly operate interface, for convenient and rapid to set parameters.
4.The indication of fault is clear, and function is more humanized.
5.Hi-sensitive electric eye, which trace the printed web on film and make the sealing on accurate position.
6.Accurate temperature control, which is control the sealing temperature for various of packing film. And the sealing effect is very well.
7.Set the function of positioning power-off, without sticking to the blade and no waste of film.
8.Simple and clear transmission system with more reliable work and more convenient maintenance.
9.The control is realized through the soft, which facilitate the function regulation and technology upgrade, and they can also satisfy the production requirement.
10.Automatic feeder device on the blister, which is suitable for the automatic feeding for aluminum plastic dosage panel with many kinds of specifications.
11.The different plastic feeders and N2 blower are optional.
|
Model
|
DZP-250
|
DZP-400
|
|
Production capacity
|
30-150 package/minute
|
|
Packaging size(two cutters)
|
L(60-190)xW(30-110)xH(2-40)mm
|
L(65-190)xW(30-180)xH(2-60)mm
|
|
Packaging size (one cutters)
|
L(120-380)xW(30-110)xH(2-60)mm
|
L(120-380)xW(30-180)xH(2-80)mm
|
|
Maximun width of film
|
250mm
|
400mm
|
|
Power of supply
|
AC 220V 50Hz, 2.5Kw
|
AC 220V 50Hz, 3Kw
|
|
Weight
|
700kg
|
800kg
|
|
Outline dimensions
|
3350x650x1550mm
|
4000x800x1550mm
|
