Quick Details
Description
- Place of Origin:Zhejiang, China (Mainland)
- Brand Name:HAICHINA

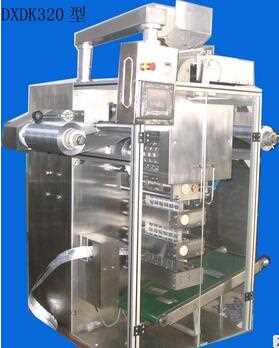

- Model Number:DXDK320
- Type:Filling Equipment
Specifications
applicable for pharmaceutical, food, cosmetic. it can pack pellets, sticky and semi-sticky material for four edges sealing
This machine is a automatic machine with engine, electrical and air, and the structure is simple. it has good stable and wide packing rage. The main parts of equipment adopt stainless steel, according with the GMP standard, It operate by human machine interface and control by PLC, it make the machine more intelligence. the temperature is very stable because of independency temperature clock.. Photo electricity following system can make pattern in both side of the bag more perfect, packing position more nicety.
The aluminum foil and diaphragm install to the spreading roll separately, the diaphragm pass through three fixed roll then go to the high sealing roll, under high temperature and press of heat sealing roll, the diaphragm form to continuous bags, at the same time the filling machine already put the material in the bags, then bags go to finish printing batch numbervertical cuttinghorizontal cutting unit, in these unit pre-designed boards are forming, the finished products slip to the box, waste material slip to the waste box too.
|
Packing material
|
compoud rilm made of plastic and alunium and platic
Width: max 320mm
Thickness: 0.05-0.1
Inter diameter: 70-76mm
|
|
Packing dose
|
1-2 troche(granule)
|
|
Packing speed
|
across cuting time≥15time/min
|
|
Installed power
|
6KW
|
|
Electrical source
|
three phase five wire AC 380V 50HZ
|
|
Outer sizes(l*w*h)
|
1500mm*1070mm*2100mm
|
|
Weight
|
1100Kg
|
and packaging machines, such as flow wrap machines, cellophane wrapping machines and full automatic wet tissue packaging machines.
We can design and produce various packing equipment according to users' requirements. Our company has passed the evaluations of ISO9001 and CE certifications. We have already built a good image and gained a good reputation in the foodstuff, pharmaceutical industry and relative machine industries. Our products are exported all over the world, Such as America, Europe, Southeast Asia and the Middle East.
We are looking forward to building long-term and cooperative relationships with you. Please feel free to contact us for more detail.
