Quick Details
Description
Type:Other, cartoning machine
Condition:New
Application:Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:Bottles, Cartons
Packaging Material:Paper
Automatic Grade:Automatic
Driven Type:Electric
Voltage:220V
Power:1.5Kw
Place of Origin:Zhejiang, China (Mainland)
Brand Name:HAICHINA
Model Number:DZH-120
Weight:1500kg
Dimension(L*W*H):3200mm* 1200mm* 1900mm
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas
Encasing speed:30-120 case/min
Quality requirement of box:250-350g/m*m
Dimension range (L* W*H):(50-180)mm* (30-85)mm* (15-50)mm
Quality requirement of leaflet:50-65g/m*m
Unfolded leaflet specification( L* W):(80-300)mm*(70-210)mm
Product Application
A cartoner or cartoning machine, is a packaging machine that forms cartons: erect, close, folded, side seamed and sealed cartons.

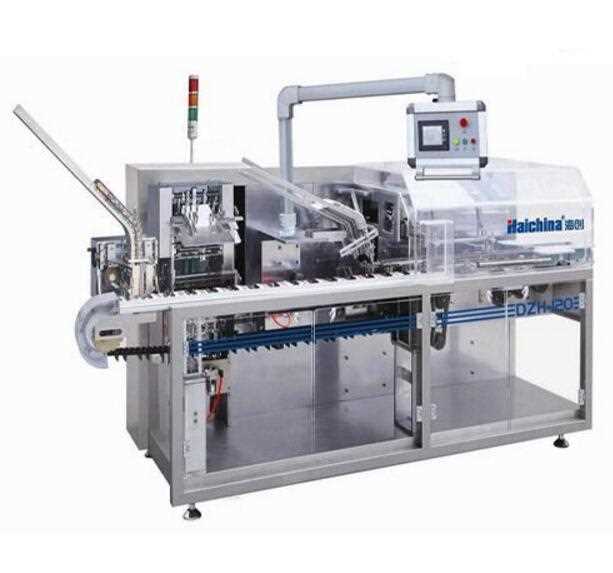

DZH-120 automatic blister cartoning machine is an intermittent motion cartoner, which picks a single piece from stack of folded carton and erects it, fills with a product or bag of products or number of products horizontally through an open end and closes by tucking the end flaps of the carton or applying glue or adhesive. The product might be pushed in the carton either through the mechanical sleeve or by pressurized air. For many applications however, the products are inserted into the carton manually. This type of Cartoning machine is widely used for packaging foodstuffs, confectionery, medicine, cosmetics, sundry goods, etc.
DZH-120 Automatic cartoning machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively
It can connect with Blister Machine, Pillow Pack Machine,Overwrapping machine etc., to form a Production Packaging Line.
|
SPECIFICATIONS FOR CARTONING MACHINE
|
|
Encasing speed
|
30-120boxes/min
|
|
Box
|
Quality of box
|
250-350g/m
|
|
Size range(L*W*H)
|
(50-180)*(30-85)*(15-50)mm
|
|
Leaflet
|
Quality of Leaflet
|
50-65g/m2
|
|
Leaflet size unfold
|
(80-300)*(70-210)mm
|
|
Leaflet folding type(1-4line)
|
(70-210)*(20-40)mm
|
|
Compressed air
|
Air pressure
|
0.5-0.7mPa
|
|
Air consumption
|
120-160L/min
|
|
Power supply
|
220V/50HZ
|
|
Motor power
|
1.5KW
|
|
Machine dimension(L*W*H)
|
3200*1200*1900mm
|
|
Machine weight
|
1500kg
|
and packaging machines, such as flow wrap machines, cellophane wrapping machines and full automatic wet tissue packaging machines.
We can design and produce various packing equipment according to users' requirements. Our company has passed the evaluations of ISO9001 and CE certifications. We have already built a good image and gained a good reputation in the foodstuff, pharmaceutical industry and relative machine industries. Our products are exported all over the world, Such as America, Europe, Southeast Asia and the Middle East.
We are looking forward to building long-term and cooperative relationships with you. Please feel free to contact us for more detail.
