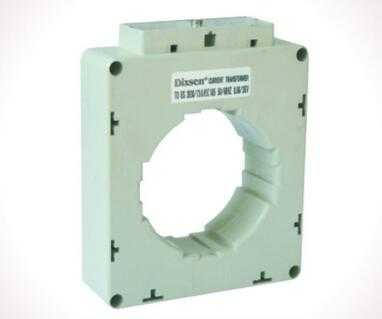

Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Dixsen
- Model Number: MSQ-85
- Usage: Current
- Phase: Single
- Coil Structure: Toroidal
- Coil Number: Single
- Rated primiary current: 750-3000A
- Rated Insulation Level: 0.66/3KV
- Security factor: FS<5
Current Transformer (C.T.) is used to transform the high AC current to small easily manageable value. They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments. Low voltage current transformers are manufactured as of two types for measuring CT and protection CT.
MEASURING CT
Measuring current transformers are constructed to feed on other low voltage apparatus such as measuring instruments, relays, watt-hour meters (KW meter) and these type of current transformers are mainly used 0.5 and 1 class to transfer the current from highest rated current to rated secondary current.
|
Model
|
Ratio
(A)
|
Burden (VA)
|
Case
Qty.(Pcs)
|
Item
Code
|
|
Class: 0.5
|
Class: 1.0
|
|
MSQ-85
|
750/5
|
10
|
15
|
12
|
108507505
|
|
MSQ-85
|
800/5
|
10
|
15
|
12
|
108508005
|
|
MSQ-85
|
1000/5
|
10
|
15
|
12
|
108510005
|
|
MSQ-85
|
1200/5
|
10
|
15
|
12
|
108512005
|
|
MSQ-85
|
1500/5
|
10
|
15
|
12
|
108515005
|
|
MSQ-85
|
1600/5
|
10
|
15
|
12
|
108516005
|
|
MSQ-85
|
2000/5
|
15
|
15
|
12
|
108520005
|
Zhejiang Dixsen Electrical Co., Ltd. was incorporated in 1992, with a standard factory of 8000 square meters in Daqiao Industrial Zone of Wenzhou.
Our company consists of Management Dept., Marketing Dept., Engineering & Technology Dept., Quality Control Dept., Material Supply Dept., Production Planning Dept. and Financial Dept. Currently, we have 386 employees, including 5 engineers and 12 technicians.
Our main products are current transformers, transformers, thermal relays, panel meters, mini circuit breakers, AC contactors, fuses and changeover switches. Our company has strong technical capability, advanced production and test equipment, and world's latest manufacturing process and technology to adequately meet customers' needs for quality.
Our company constantly and effectively operates under ISO9001 international quality system. As a result, our products have obtained international certificates like VDE, UL, KEMA, TSE, CE, CB, as well as domestic certificates like CCC and CMC. For many years, our company has been awarded as an outstanding enterprise, an excellent export-oriented enterprise and a contract abiding and creditworthy enterprise of city.
Presently, we maintain steady business relationships with companies in over 80 countries and regions. We pursue the spirit of "pioneering, innovation and dedication" and quality strategy of "reliable performance to meet customers' needs and constant innovation to promote Dixsen brand".
