Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Dixsen
- Model Number: DP-23
- Usage: Current
- Phase: Single
- Coil Structure: Rectangle
- Coil Number: Autotransformer
- Rated primary current: 100400A
- Burden range: 1.5-5VA
- Certificate: CE
The DP split core type transformer has been designed for installing easily in circuit system and network. It is improved from DP model, its casting materials are made from high extinguishing PA66, according to IEC6004-1, BS7626, VDE0414-44-1, UI94.
Feature:
Special designed terminal
Convenient for secondary connection
The primary terminals are installed and connected without any supply interruption
|
Model
|
Ratio
(A)
|
Burden(VA)
|
Case
Qty.(Pcs)
|
Item
Code
|
|
Class: 0.5
|
Class: 1.0
|
|
DP-23
|
100/5
|
1.5
|
2.5
|
20
|
402301005
|
|
DP-23
|
1500/5
|
1.5
|
2.5
|
20
|
402301505
|
|
DP-23
|
200/5
|
2.5
|
3.75
|
20
|
402302005
|
|
DP-23
|
250/5
|
2.5
|
5
|
20
|
402302505
|
|
DP-23
|
300/5
|
5
|
5
|
20
|
402303005
|
|
DP-23
|
400/5
|
5
|
5
|
20
|
402304005
|
Note: Class/VA rating must be mentioned when ordering.

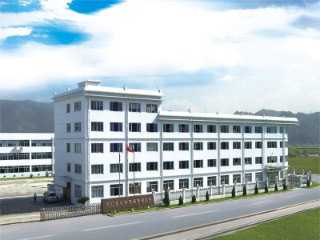

Zhejiang Dixsen Electrical Co., Ltd. was incorporated in 1992, with a standard factory of 8000 square meters in Daqiao Industrial Zone of Wenzhou.
Our company consists of Management Dept., Marketing Dept., Engineering & Technology Dept., Quality Control Dept., Material Supply Dept., Production Planning Dept. and Financial Dept. Currently, we have 386 employees, including 5 engineers and 12 technicians.
Our main products are current transformers, transformers, thermal relays, panel meters, mini circuit breakers, AC contactors, fuses and changeover switches. Our company has strong technical capability, advanced production and test equipment, and world's latest manufacturing process and technology to adequately meet customers' needs for quality.
Our company constantly and effectively operates under ISO9001 international quality system. As a result, our products have obtained international certificates like VDE, UL, KEMA, TSE, CE, CB, as well as domestic certificates like CCC and CMC. For many years, our company has been awarded as an outstanding enterprise, an excellent export-oriented enterprise and a contract abiding and creditworthy enterprise of city.
Presently, we maintain steady business relationships with companies in over 80 countries and regions. We pursue the spirit of "pioneering, innovation and dedication" and quality strategy of "reliable performance to meet customers' needs and constant innovation to promote Dixsen brand".
