Quick Details
Description

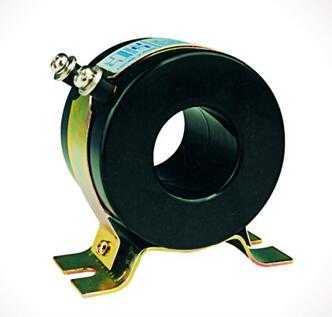

Measuring current transformers are constructed to feed on other low voltage apparatus such as measuring instruments. relays,watt-hour meters(KW meter)and these type of current transformers are mainly used 0.5 and 1 class to transfer the current from highest rated current to rated serondary current.
|
Model
|
Ratio
(A)
|
Burden(VA)
|
Case
Qty.(Pcs)
|
Item
Code
|
|
Class 0.5
|
Class: 1.0
|
|
RCT-35
|
30/5
|
-
|
-
|
40
|
703500305
|
|
RCT-35
|
50/5
|
-
|
2.5(2T)
|
40
|
703500505
|
|
RCT-35
|
60/5
|
-
|
2.5(2T)
|
40
|
703500605
|
|
RCT-35
|
80/5
|
-
|
1.5
|
40
|
703500805
|
|
RCT-35
|
100/5
|
1.5
|
2.5
|
40
|
703501005
|
|
RCT-35
|
120/5
|
2.5
|
3.75
|
40
|
703501205
|
|
RCT-35
|
150/5
|
2.5
|
3.75
|
40
|
703501505
|
|
RCT-35
|
200/5
|
3.75
|
5
|
40
|
703502005
|
|
RCT-35
|
250/5
|
3.75
|
5
|
40
|
703502505
|
|
RCT-35
|
300/5
|
5
|
10
|
40
|
703503005
|
Note: Class/VA rating must be mentioned when ordering.
| |

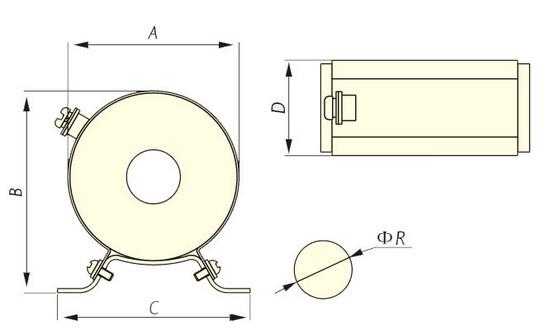

RCT-35
|
|
A
|
78 mm
|
|
B
|
120 mm
|
|
C
|
93 mm
|
|
D
|
55 mm
|
|
R
|
35 mm
|
