Quick Details
Description
- Model NO.: MH-105B
- Strapping Material: Strip
- Automatic Grade: Automatic
- Species: Automatic Strapping Machine
- Driven Type: Electric
- Model: Mh-105b
- Arch Size: Customized
- Power: 1.4kw
- Strap Width: 9~15mm
- Table Height: Customized
- Specification: CE
- HS Code: 8422400000
- Application: Cosmetics, Carbonated Drinks, Alcoholic Beverages, Fruit Drinks
- Packaging: Cartons
- Strapping Mode: Welding Type
- Packaging Material: Plastic
- Structure: Basic Type Strapping
- Machine Size: 1400*630*1430mm(L*W*H)
- Net Weight: 240kg
- Voltage: 380V 50Hz
- Strapping Efficency: 2s/Bundle
- Trademark: YUPACK
- Origin: Qingdao

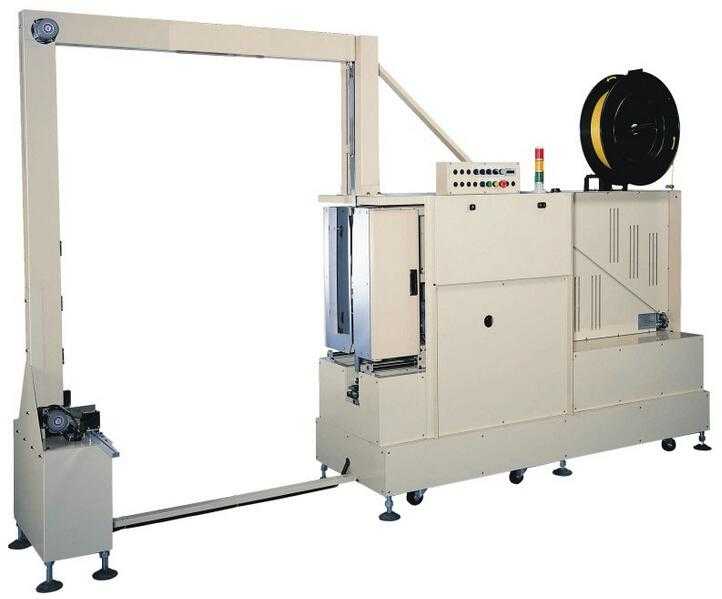

1.Description of MH-105B automatic pallet strapping machine
High performance MH-105B pallet strapping machine for boxes or pallet loads.it can be integrated into conveyor line.Strapping head is side mounted on the arch and movable. During the strapping cycle, the strapping head indexes towards the load before tensioning sequence, so tensioning and sealing are done right against the side of the load.The bottom section of the strapping arch can be a standard undertrack style, or an electric motor driven pallet bayonet for "through-pallet" strapping,or a combination of both.
2. Machine Characteristics of automatic pallet strapping machine
1.Automatic packaging;high work efficiency
2.Automatic warning system of low volume straps
3.For PP and PET strap
4.Cooling time adjustable
5.Auto strap tape guiding system
6.Auto alarm device
7.Can be customized accroding to your pallet size
3. Your need take care of main electrical part of MH-105B pallet wrapping machine
|
Name
|
Brand
|
Original Place
|
|
Main motor
|
TWT
|
Taiwan
|
|
PLC
|
Mitsubishi
|
Japan
|
|
Packing motor
|
WANSHSIN
|
Taiwan
|
|
Movement motor
|
WANSHSIN
|
Taiwan
|
|
Position switch
|
OMRON
|
Japan
|
|
Relay
|
SCHNEIDER
|
France
|
|
Touch panel
|
WEINVIEW
|
Taiwan
|
|
Proximity switch
|
FOTEK
|
Taiwan
|
|
Photoelectric switch
|
SICK
|
Germany
|
|
Overheat protector
|
SCHNEIDER
|
France
|
|
Panel switch button
|
SCHNEIDER
|
France
|
4. Technical parameter of automatic pallet strapping machine
|
Model
|
MH-105B
|
|
Voltage
|
380V 3PH
|
|
Power
|
1.2KW 60HZ
|
|
PP/PET strap width
|
9mm,12mm,15mm
|
|
Efficiency
|
18sec/strap 60pallet/hour(2cycles/pallet)
|
|
Tightening force
|
15-80kg
|
|
Compressed air
|
5-6bar
|
|
Sealing Method
|
Heating element
|
|
Reel Inside Diameter
|
Dia.203mm(8"x8") Dia.203->406mm(16"x16")
|
|
Machine size
|
4150*660*2573mm
|
|
Strapping Size
|
Can be customized
|
|
Machine Weight
|
550kg
|
High performance MH-105B pallet strapping machine for boxes or pallet loads.it can be integrated into conveyor line.Strapping head is side mounted on the arch and movable.
Qingdao Ausense was founded in 2001, specializing in automated packaging equipment planning Road after the production line, R & D and manufacturing. After years of practice, now Ausense has automatic box, packing, sealing, shrink, vacuum, strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipment. Companies rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.
Ausense Company flagship brand "YUPACK", the company has a vacuum machine, Binder and a number of Chinese patents. All products have passed the European CE certification; Manufacturing plants involved in the Chinese machinery industry standard "mechanical Binder, " "sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.
2016, Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry as multi-industry transformation from 3.0 to 4.0 upgrade services.
