Quick Details
Description
- Model NO.: FXJ-5050
- Automatic Grade: Semi-Automatic
- Application: Cosmetics, Cleaning, Detergent, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
- Type: Packaging Sealing Machine
- Material Type: Carton
- Power: 240W
- Machine Size: L1020*W850*H1450mm
- Conveyor Speed: 0~12m/Min Can Be Adjustable
- Min Package Size: 180*150*150mm(L*W*H)
- Work Table Height: 500~700mm Can Be Adjustable
- Specification: CE
- HS Code: 8422309090
- Packaging: Cartons
- Packaging Material: Plastic
- Usage: Outpacking
- Packaging Material Mechanical Properties: Tape
- Model: Fxj-5050
- Voltage: 220V 50Hz 1pH(Can Be Customized)
- Net Weight: 145kg
- Max Package Size: W500mm*H600mm
- Tape Width: 36~70mm
- Trademark: YUPACK
- Origin: Qingdao

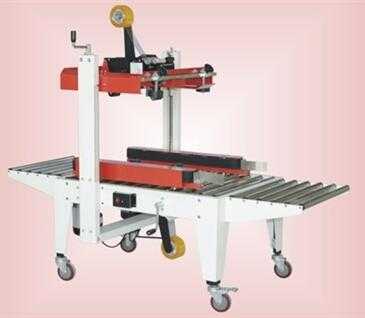

1.Description of FXJ-5050 automatic carton sealing machine
FXJ-5050 sealing automatic carton sealing machine is mainly used in the sealed carton packaging, can work stand-alone be used with the matching assembly line, is widely used in the industry of household appliances, textile, food, general merchandise, medicine, chemical industry, etc..
Carton sealing machine using adhesive tape sealing make the carton seal affixed, economic and rapid, easy to adjust, can complete left and right carton sealing action in one time, you can also use the printing tape to improve the image of the product.
FXJ-5050 is one of the most lowest cost and highest performance carton sealer in Ausence company for you to choose.
2.FXJ-5050 Carton sealing machine characteristics
1.Impored advanced parts,electrical and pneumatic components,high quality, stable performance.
2.The height and width can be adjustable for different dimension of carton.
3.left and right design for drive more stable during working process.
4.Bigger electrical machine, faster conveyor speed.
5.Cutter safety system to prevent hands from stabbed by the cutter.
6.Both steel and stainless steel types.
7.48-60mm width of adhesive tape.
3.FXJ-5050 Carton sealing machine technical parameter
|
Mode
|
FXJ-5050
|
|
Power
|
240W 50HZ
|
|
Voltage
|
220V 1ph can be customized
|
|
Machine dimension
|
L1020*W850*H1450mm
|
|
Net weight
|
120KG
|
|
Conveyor speed
|
0~20m/min
|
|
Tape width
|
36~60mm
|
|
Max.packager size
|
L:NO limited*W500mm* H500mm
|
|
Min.packager size
|
L:180*W150mm*H150mm
|
Qingdao Ausense was founded in 2001, specializing in automated packaging equipment planning Road after the production line, R & D and manufacturing. After years of practice, now Ausense has automatic box, packing, sealing, shrink, vacuum, strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipment. Companies rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.
Ausense Company flagship brand "YUPACK", the company has a vacuum machine, Binder and a number of Chinese patents. All products have passed the European CE certification; Manufacturing plants involved in the Chinese machinery industry standard "mechanical Binder, " "sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.
2016, Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry as multi-industry transformation from 3.0 to 4.0 upgrade services.
