Quick Details
Description
- Model NO.: FXJ-AT5050
- Automatic Grade: Automatic
- Application: Cosmetics, Drinks, Oil, Dairy Products, Hair Care Products, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour
- Type: Sealing Machine
- Material Type: Tape
- Machine Size: L1840*W1000*H1500mm
- Power: 0.6kw
- Table Height: 500~700mm Can Be Adjustable
- Min Package Size: 180*150*150mm(L*W*H)
- Trademark: YUPACK
- Origin: Qingdao
- Packaging: Cartons
- Packaging Material: Plastic
- Usage: Outpacking
- Packaging Material Mechanical Properties: Full Automatic Filling and Sealing Machine
- Model: Fxj-At5050
- Net Weight: 240kg
- Voltage: 220V 50Hz 1pH(Can Be Customized)
- Max Package Size: L600*W500*H500mm(L*W*H)
- Tape Width: 36~70mm
- Specification: CE
- HS Code: 8422309090

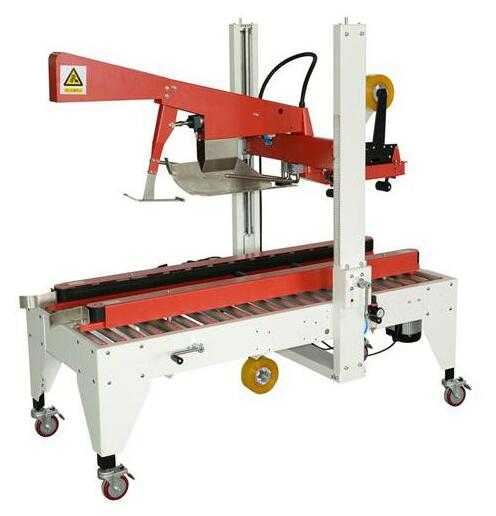

1. Description of FXJ-AT5050 automatic carton sealing machine
FXJ-AT5050 automatic folding carton sealer adopt left and right belt driving and pneumatic folding cover mechanism, Acme thread leadscrew adjustable mechanism for heigt and width, high strength structure, make the machine performance reliable, and can meet continuous heavy sealing work in the production line. Can manually adjust the sealing size for the same specifications carton sealing together.
FXJ-AT5050 automatic carton have the advantages of simple operation, convenient and easy adjustment, fast sealing speed, high efficiency, strong and durable. can stand-alone working and can also work with automatic production line or automatic carton erector.
2. Main characteristic of automatic carton sealing machine
1.Imported advanced parts,electrical and pneumatic components,high quality, stable performance.
2.The height and width can be adjustable for different dimension of carton.
3.Left and right belt drive design for drive more stable during working process.
4.Bigger electrical machine, faster conveyor speed.
5.Cutter safety system to prevent hands from stabbed by the cutter.
6.Especially suitable for more heavier goods.
7.48-60mm width of adhesive tape.
8.Simple operation, convenient and easy adjustment, fast sealing speed, high efficiency, strong and durable
3.Technical parameter of FXJ-AT5050 automatic carton sealing machine
|
Mode
|
FXJ-AT5050
|
|
Power
|
600W 50HZ
|
|
Voltage
|
110V,220V~240V 1ph
|
|
Machine dimension
|
L1840*W1000*H1500mm
|
|
Net weight
|
240KG
|
|
Conveyor speed
|
0~20m/min
|
|
Tape width
|
36~60mm
|
|
Max.packager size
|
L:600*W500mm* H500mm
|
|
Min.packager size
|
L:120*W120mm*H120mm
|
Qingdao Ausense was founded in 2001, specializing in automated packaging equipment planning Road after the production line, R & D and manufacturing. After years of practice, now Ausense has automatic box, packing, sealing, shrink, vacuum, strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipment. Companies rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.
Ausense Company flagship brand "YUPACK", the company has a vacuum machine, Binder and a number of Chinese patents. All products have passed the European CE certification; Manufacturing plants involved in the Chinese machinery industry standard "mechanical Binder, " "sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.
2016, Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry as multi-industry transformation from 3.0 to 4.0 upgrade services.
