Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: LONGZHULIFT
- Model Number: LZSJG
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 1000kg
- Min. Lifting Height: 500mm
- Max. Lifting Height: 10000mm
- Table Size: CUSTOMIZED SIZE
- Overall Dimensions: CUSTOMIZED SIZE
- Weight: 2200kg
- Certification: CE
- Warranty: 1 Year, 1 year
- After-sales Service Provided: No overseas service provided

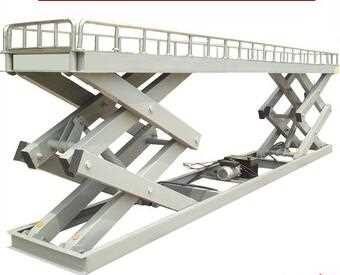

- Name: Hydraulic double scissor lift table
- Voltage: Local Voltage
- Lifting speed: 4-6m/min
- Main frame: High-duty rectangular steel tube
- Platform: Anti-skid checkered steel plate
The scissor lift table’s maximum load capacity can be designed to 170 tons. The table size, lifting travel and capacity can be customized according to user’s different requirments. The control system can be designed to single ground control or platfrom-ground control, inching control or linkage control, and the users can also use wireless remote control. It has the advantage of stable structure, low failure rate, reliable operation, safe and efficient, easy maintenance, which is widely used in production line, warehouse and logistics etc.
Product Feature
1. All steel construction, and the scissor mechanical structure makes it more strong and stable.
2. Two control system: control box and wireless remote control, very convenient.
3. Platform have service hole, easy to maintain and repair the machine.
4. Heavy duty, the capacity can be designed from 100kg to 50 tons.
Safety Feature
1. Emergency stop button
When an emergency occurs, press down the emergency stop button, the platform will stop lifting or lowering.
2. Emergency lowering system
When power cut off or machine stoppage, the platform stay in the air, opening hydraulic valve manually, the platform will go down slowly.
3. Self-locking function
When power off suddenly, the platform will stop in the air and not appear falling suitation.
4. One touch power off
Distribution box have the one touch power off button to protect the user's safety.
5. Line production
All the line are put in the different insulation-tube, to prevent the line and line winding, to decrease the joint or leakage danger.
6. Overload protection
The platform will not rising, if it is overload.
Jinan longzhu hydraulic machinery Co.,Ltd is located in Jinan City, Shandong province. In the past 20 years, we have been focusing on hydraulic lifting platform's development and production, and have matained good cooperative relationship with domestic famous reasearch institutes and key universities, having created an open and efficient technical cooperation and technical innovation system, established the lifting platform R & D Center, and having participated in a series goverment major projects's development and production. Now Longzhu has developed into a modern lifting machinery manufacturing enterprises integrating with research, production and slaes together, and has been of strong ability on research and enterprise management.
Company's main products include mobile sicssor lifts, self-propelled scissor lifts, scissor lift tables, freight lifts, personnel lifts, Vertical cylinder lifts, boom lifts, vehicle-mounted lifts, wheelchair lifts, lifting Stage, dock ramp and a series of hydraulic lifting products. All of our products have matched with relevant national and industry technical standards. Customer satisfaction has been our forever pursuit.
Since the establishment of the company, longzhu has accumulated rich experience in development, production and sales. Our products have the advantage of high technology, rational construction, lifting safety, large capacity, simple operation, low maintenance cost and so on, which is greatly appreciated in a variety of different markets throughout the world. They can be widely used in constructions and decorations areas, enterprise production areas, playground, airport, station, port, warehouse and a series place. Beside regular model, we can also process the products according to customer's specs. Welcome to visit our company.
