Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: LONGZHULIFT
- Model Number: LZZQ
- Lift Mechanism: Articulated Lift
- Lift Drive / Actuation: Hydraulic
- Power: 12kw
- Rated Loading Capacity: 200kg
- Min. Lifting Height: 1900mm
- Max. Lifting Height: 16000mm
- Table Size: 1200*800mm
- Overall Dimensions: 6530*1720*1900mm
- Weight: 1900KG
- Certification: CE
- Warranty: 1 Year
- After-sales Service Provided: No overseas service provided
- Name: Trailer mounted articulating boom lifts
- Max. Operating radius: 4500m to 9500m

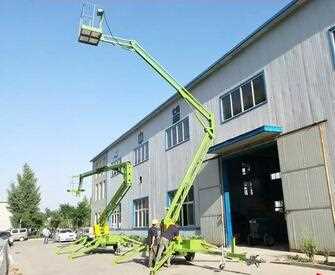

trailer mounted articulating boom lifts are made by new type of high-quality steel, having the advantage of high strength, light weight and compact size. Its trailer-style design is easy to transport, and can meet the long-distance aerial work’s requirment. It uses electro-hydraulic outriggers and electric control system, can quickly set up and the operation is simple and safe. The platform can be raised in vertical and swing in horizontal, easy to cross the obstacles to reach the working position, widely extending the working area, which is an ideal aerial work equitment.
Regular model
|
Model
|
Max. Pltform Height
|
Platform Size
|
Capacity
|
Operating radius
|
Overall Size
|
Weight
|
|
LZZB-8
|
8m
|
1.2*0.8m
|
200kg
|
4.5m
|
5.2*1.6*1.9m
|
1500kg
|
|
LZZB-10
|
10m
|
5.7m
|
5.45*1.7*1.9m
|
1700kg
|
|
LZZB-12
|
12m
|
6.4m
|
6.53*1.72*1.9m
|
1900kg
|
|
LZZB-14
|
14m
|
8.5m
|
6.2*1.73*2.1m
|
2300kg
|
|
LZZB-16
|
16m
|
9.5m
|
7*1.73*2.2m
|
2600kg
|
Jinan longzhu hydraulic machinery Co.,Ltd is located in Jinan City, Shandong province. In the past 20 years, we have been focusing on hydraulic lifting platform's development and production, and have matained good cooperative relationship with domestic famous reasearch institutes and key universities, having created an open and efficient technical cooperation and technical innovation system, established the lifting platform R & D Center, and having participated in a series goverment major projects's development and production. Now Longzhu has developed into a modern lifting machinery manufacturing enterprises integrating with research, production and slaes together, and has been of strong ability on research and enterprise management.
Company's main products include mobile sicssor lifts, self-propelled scissor lifts, scissor lift tables, freight lifts, personnel lifts, Vertical cylinder lifts, boom lifts, vehicle-mounted lifts, wheelchair lifts, lifting Stage, dock ramp and a series of hydraulic lifting products. All of our products have matched with relevant national and industry technical standards. Customer satisfaction has been our forever pursuit.
Since the establishment of the company, longzhu has accumulated rich experience in development, production and sales. Our products have the advantage of high technology, rational construction, lifting safety, large capacity, simple operation, low maintenance cost and so on, which is greatly appreciated in a variety of different markets throughout the world. They can be widely used in constructions and decorations areas, enterprise production areas, playground, airport, station, port, warehouse and a series place. Beside regular model, we can also process the products according to customer's specs. Welcome to visit our company.
