Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: LONGZHULIFT
- Model Number: LCCJR
- Lift Mechanism: Lift Chain
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 300kg
- Min. Lifting Height: 0m
- Max. Lifting Height: 7m
- Table Size: Customized Size
- Overall Dimensions: Customized Size
- Weight: 600kg
- Certification: CE
- Warranty: 1 Year, 1 year
- After-sales Service Provided: No overseas service provided
- Name: Electric hydraulic vertical wheelchair lift
- Voltage: Local Voltage
- Usage: Indoor or outdoor
- Surface material: Stainless steel or Iron spray

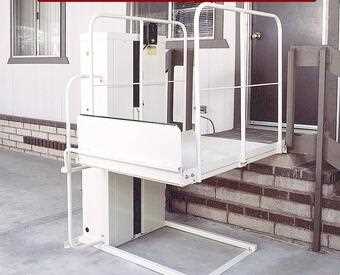

It's a residential lift that provides efficient, cost effective access to any part of your home. Made up of a drive mast, passenger platform and doors, it can be installed directly on the floor or in a pit and suitable for indoor or outdoor applications. When installed on the outside, it can provide easy entry to a raised deck or porch. Compared with ramps, it's more visually appealing and require less space. When installed on the inside, it can provide easy floor-to-floor access.Each wheelchair lift that produced by Longzhu is designed to fit your customers' specific needs and layout.
|
Detailed Parameters
|
|
Name
|
Wheelchair platform lift
|
|
Platform Size
|
1200*1500mm, support customation
|
|
Max. Capacity
|
300kg
|
|
Lifting height
|
Max. 6m, support customation
|
|
Lifting Speed
|
80mm/s
|
|
Power
|
0.75kw
|
|
Surface Materical
|
Stainless steel or aluminum alloy with Powder coating
|
|
Bottom-plate of platform
|
Antiskid aluminum plate
|
|
Overall painting
|
Static blasting painting
|
|
Guard-plate type
|
Exchanging configuration, aluminum alloy plate with static blasting painting
|
|
Voltage
|
Local Voltage
|
|
Control system source
|
24V/DC
|
|
Control system
|
Wireless remote control and control box on the platform
|
|
Drive System
|
Hydraulic drive
|
|
Working temperature
|
From -10°to 60°
|
|
Usage
|
Indoor or outdoor
|
|
Platform In&out
|
90°or 180°
|
|
Installation mode
|
Non-base pit installation, directly fixed on the concrete ground(when there is no pit for outdoor using, the concrete ground below the platform shall not be lower than the neighboring ground.
|
|
Safety Device
|
|
Weak current protection
|
The control system use 24V weak current to protect the user's safety.
|
|
Emergency stop button
|
When an emergency occurs, press down the emergency stop button, the platform will stop lifting or lowering.
|
|
Emergency lowering system
|
When power cut off or machine stoppage,the platform stay in the air, opening hydraulic valve manually, the platform will go down slowly.
|
|
Safety interlocking
|
The lifting platform shall not run if operates improperly.
|
|
Safety edge
|
The platform will stop be immediately, when the safety edge meets obstacles during operation.
|
|
Leakage protection
|
Use Delixi electricity leaking protection switch to protect the user's safety.
|
|
One touch power off
|
distribution box have the one touch power off button to protect the user's safety.
|
|
Line protection
|
All the line are put in the different insulation-tube,to prevent the line and line winding, to decrease the joint or leakage danger.
|

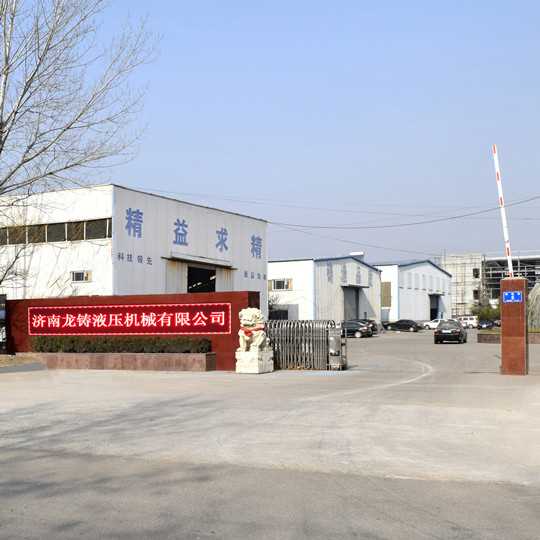

Jinan longzhu hydraulic machinery Co.,Ltd is located in Jinan City, Shandong province. In the past 20 years, we have been focusing on hydraulic lifting platform's development and production, and have matained good cooperative relationship with domestic famous reasearch institutes and key universities, having created an open and efficient technical cooperation and technical innovation system, established the lifting platform R & D Center, and having participated in a series goverment major projects's development and production. Now Longzhu has developed into a modern lifting machinery manufacturing enterprises integrating with research, production and slaes together, and has been of strong ability on research and enterprise management.
Company's main products include mobile sicssor lifts, self-propelled scissor lifts, scissor lift tables, freight lifts, personnel lifts, Vertical cylinder lifts, boom lifts, vehicle-mounted lifts, wheelchair lifts, lifting Stage, dock ramp and a series of hydraulic lifting products. All of our products have matched with relevant national and industry technical standards. Customer satisfaction has been our forever pursuit.
Since the establishment of the company, longzhu has accumulated rich experience in development, production and sales. Our products have the advantage of high technology, rational construction, lifting safety, large capacity, simple operation, low maintenance cost and so on, which is greatly appreciated in a variety of different markets throughout the world. They can be widely used in constructions and decorations areas, enterprise production areas, playground, airport, station, port, warehouse and a series place. Beside regular model, we can also process the products according to customer's specs. Welcome to visit our company.
