• KYN61G-40.5 Series 50/60HZ Indoor High Voltage Switchgear

KYN61G-40.5 Series 50/60HZ Indoor High Voltage Switchgear

Brand Name: CHANGKAI/SINOAMIGO; Model Number: KYN61G-40.5; Max. Current: 2500A; Max. Voltage: 40.5KV;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CHANGKAI/SINOAMIGO
  • Model Number: KYN61G-40.5
  • Max. Current: 2500A
  • Max. Voltage: 40.5KV
  • Rated frequency: 50/60HZ
  • Rated main bus bar current: 630,1200,1600,2000,2500A
  • Rated branching bus bar current: 630,1250,1600,2000A
  • 4s Short-time withstand current(rms.): 16,20,25,31.5KA
  • Peak withstand current(peak.): 40,50,63,80KA
  • Protection degree: Enclosure:IP4X, Between compartment:IP2X
  • Product name: HV switchgear



Item

Unit

Data

Rated voltage

kV

40.5, 36, 35,33

Insulation level

Rated power-frequency withstand voltage(1min)

kV

95 / 118 (phase to earth / across open contacts)

Rated lightening impulse withstand voltage

kV

185/ 215 (phase to earth / across open contacts)

Rated frequency

Hz

50 / 60

Rated main bus bar current

A

630,1200,1600,2000,2500

Rated branching bus bar current

A

630,1250,1600,2000

4s Short-time withstand current (rms.)

kA

16, 20, 25, 31.5

Peak withstand current (peak.)

kA

40, 50, 63, 80

protection degree



Enclosure:IP4X, Between compartment:IP2X



Height



2400(mm)/2600 (mm)

Width

Rated branching bus bar current up to 1250A
Rated short-circuit breaking current(rms.) up to 31.5KA

1200(mm)

Rated branching bus bar current up to 1600A
Rated short-circuit breaking current(rms.) up to 40KA

1200 (mm)/1400 (mm)

Depth



2600(mm)/2800(mm)

Weight: 2000~2400kg. ^Suitable for miniaturization product being equipped.

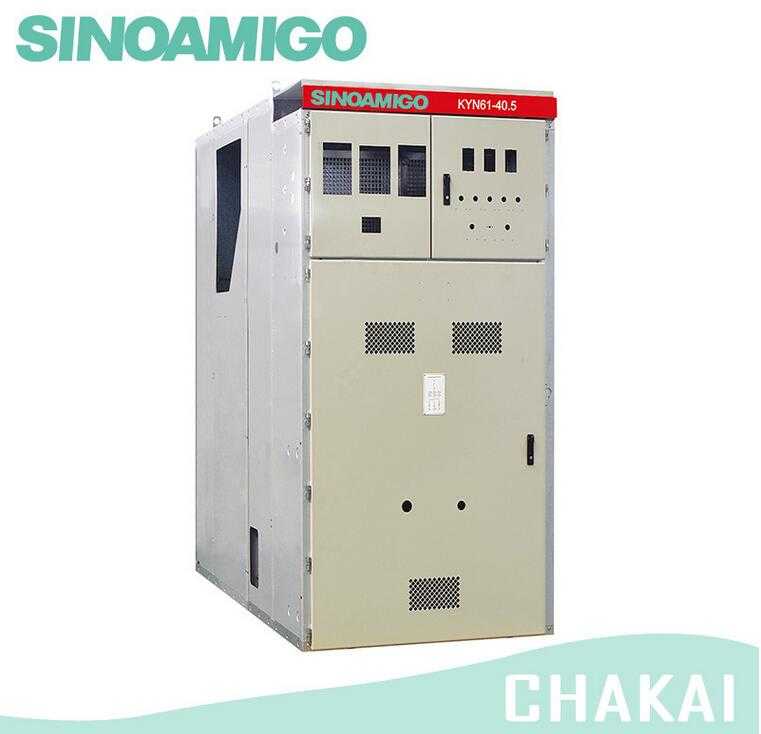

KYN61G-40.5 Series 50/60HZ Indoor High Voltage Switchgear

Company Profile

Our company is located in the coastal zone in the south of Zhejiang Province, that is, the Beautiful Yandan Mountain of Yueqing, known as China's Electric Municipality. Our company has one hundred and eighty employees in total, thirty percent of whom are various professional technicians. Our company has completely passed ISO9001 Quality System certification and obtained production license, CCC certificate, testing certificate and the rights of import and export.

Our company conducts the management principle of "strong cooperation", utilizing internal resources and absorbing external advantages to the greatest degree. We have established long-period cooperation and partner relationship with Xi'an High-Voltage Research Institution, Pinggao Electric and Zhejiang University, which provide technical support for new product exploration and market enlargement. Additionally, with the advanced testing equipment and consummate after-sales service, our company has been awarded the advanced department and excellent enterprise by the government for many years. "ChangKai" products have had praise form various customers. Some of them are exported to Korea, Russia, Albania, Vietnam and Burma.

Our company will insist on the management idea of "Creative spirit, unceasing struggle, seek for outstand, regard talents", and redound upon the clients with good products and considerate service.
