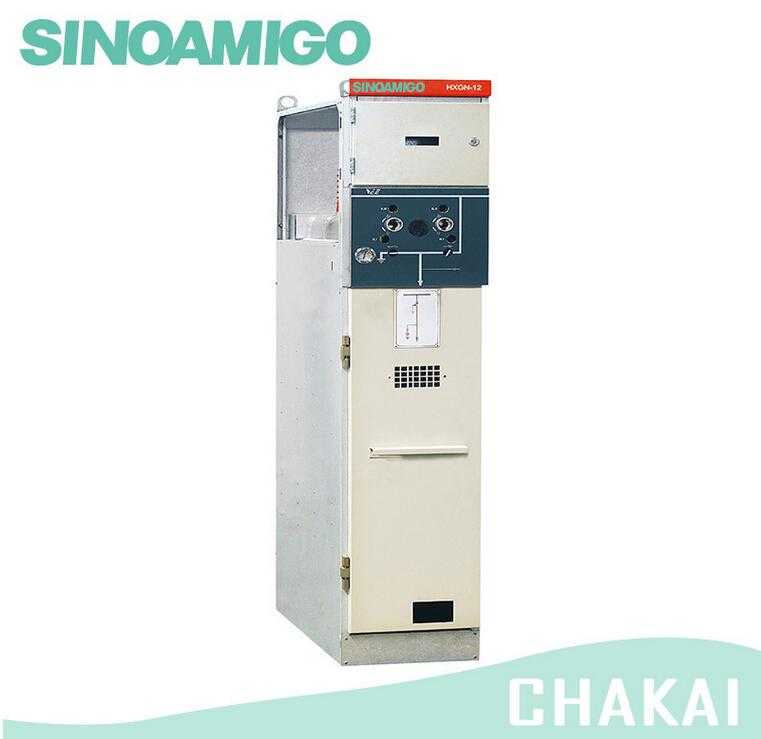

• HXGN15-12L HV Switchgear Metal-clad AC Ring Main Unit power system

HXGN15-12L HV Switchgear Metal-clad AC Ring Main Unit power system

Rated short time withstand current: 20(3S)KA; Rated peak withstand current: 50KA; Control box: Control box; Product Name: power system;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CHANGKAI /SINOAMIGO
  • Model Number: HXGN15-12L
  • Rated voltage: 3,6,10KV
  • Rated frequency: 50/60HZ
  • Main bus-bar rated current: 630A
  • Rated short circuit breaking current: 50(fuse)KA
  • Rated short time withstand current: 20(3S)KA
  • Rated peak withstand current: 50KA
  • Control box: Control box
  • Product Name: power system



No.

Item

Unit

Technical data

1

Rated voltage

kV

3,6,10

2

Highest voltage

kV

3.6, 7.2, 12

3

Main bus-bar rated current

A

630

4

Rated short circuit breaking current

kA

50(Fuse)

5

Rated short time withstand current

kA

20(3S)

6

Rated peak withstand current

kA

50

7

Rated transfer current

A

1700

8

Rated frequency



50/60

9

Degree of protection



IP3X

10

Bus system



Single bus, single bus with bypass

11

Operating method



Electromagnetism, spring storage energy manual



Height



1600/1850(mm)

Width

Width of circuit breaker panel

750(mm)

Other width of panel

375/500 (mm)

Depth



980(mm)

HXGN15-12L HV Switchgear Metal-clad AC Ring Main Unit power system

Company Profile

Our company is located in the coastal zone in the south of Zhejiang Province, that is, the Beautiful Yandan Mountain of Yueqing, known as China's Electric Municipality. Our company has one hundred and eighty employees in total, thirty percent of whom are various professional technicians. Our company has completely passed ISO9001 Quality System certification and obtained production license, CCC certificate, testing certificate and the rights of import and export.

Our company conducts the management principle of "strong cooperation", utilizing internal resources and absorbing external advantages to the greatest degree. We have established long-period cooperation and partner relationship with Xi'an High-Voltage Research Institution, Pinggao Electric and Zhejiang University, which provide technical support for new product exploration and market enlargement. Additionally, with the advanced testing equipment and consummate after-sales service, our company has been awarded the advanced department and excellent enterprise by the government for many years. "ChangKai" products have had praise form various customers. Some of them are exported to Korea, Russia, Albania, Vietnam and Burma.

Our company will insist on the management idea of "Creative spirit, unceasing struggle, seek for outstand, regard talents", and redound upon the clients with good products and considerate service.
