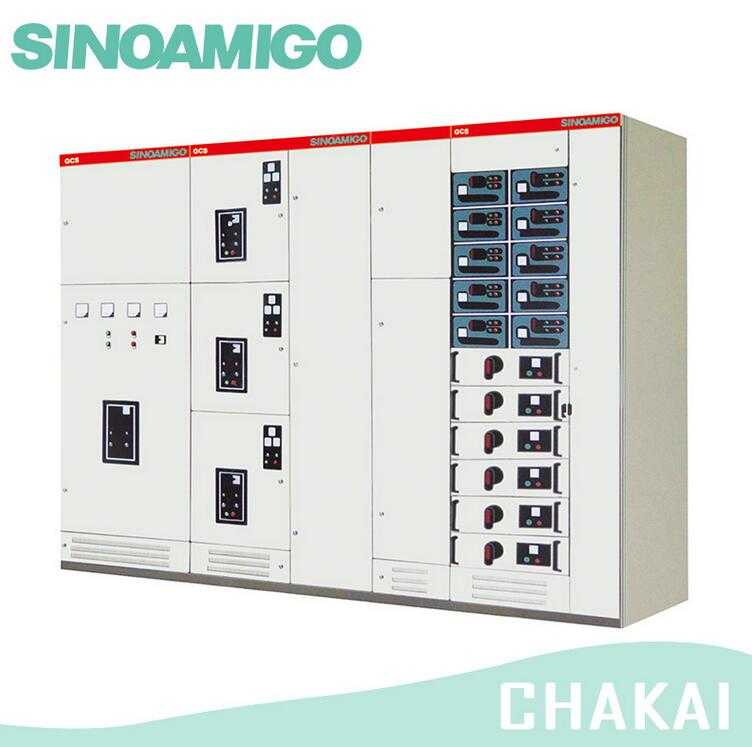

• Good Quality GCS Indoor Low Voltage switchgear distribution board

Good Quality GCS Indoor Low Voltage switchgear distribution board

Rated main bus bar max. current: 4000A; Degree of protection: IP30,IP40; Rated distribution bus bar current: 1000A; power distribution board: power distribution board;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CHANGKAI /SINOAMIGO
  • Model Number: GCS
  • Rated voltage: 380/660V
  • Rated frequency: 50/60 HZ
  • Rated insulation voltage: 660/1000V
  • Rated main bus bar max. current: 4000A
  • Degree of protection: IP30,IP40
  • Rated distribution bus bar current: 1000A
  • power distribution board: power distribution board



Item

Unit

Technical Data

Rated voltage

V

380/660

Rated insulation voltage

V

660/1000

Rated frequency

HZ

50/60

Rated main bus bar max. current

A

4000

Rated short time withstand current of main bus bar (1s)

KA

50/80

Rated short time peak withstand current of main bus bar

KA

105/176

Rated distribution bus bar current

A

1000

Degree of protection



IP30,IP40



Dimension of power center (PC) cubicle

Height H(mm)

Width B(mm)

Depth(mm)

Remarks

T

T1

T2

2200

400

1000

800

200

The current through the main bus-bars

2200

400

1000

800

200

630A,1250A

2200

600

1000

800

200

2000A,2500A

2200

800

1000

800

200

2500A,3200A

2200

1000

1000

800

200

3200A,4000A

2200

1200

1000

800

200

4000A



Dimension of motor control center (MCC) cubicle

Height H(mm)

Width(mm)

Depth(mm)

Remarks

B

B1

B2

T

T1

T2

2200

1000

600

400

1000/800/600

400

600/400/200

Front operating

2200

800

600

200

1000/800/600

400

600/400/200

2200

600

600

0

1000/800

400

600/400



Good Quality GCS Indoor Low Voltage switchgear distribution board

Company Profile

Our company is located in the coastal zone in the south of Zhejiang Province, that is, the Beautiful Yandan Mountain of Yueqing, known as China's Electric Municipality. Our company has one hundred and eighty employees in total, thirty percent of whom are various professional technicians. Our company has completely passed ISO9001 Quality System certification and obtained production license, CCC certificate, testing certificate and the rights of import and export.

Our company conducts the management principle of "strong cooperation", utilizing internal resources and absorbing external advantages to the greatest degree. We have established long-period cooperation and partner relationship with Xi'an High-Voltage Research Institution, Pinggao Electric and Zhejiang University, which provide technical support for new product exploration and market enlargement. Additionally, with the advanced testing equipment and consummate after-sales service, our company has been awarded the advanced department and excellent enterprise by the government for many years. "ChangKai" products have had praise form various customers. Some of them are exported to Korea, Russia, Albania, Vietnam and Burma.

Our company will insist on the management idea of "Creative spirit, unceasing struggle, seek for outstand, regard talents", and redound upon the clients with good products and considerate service.
