Quick Details
Description
- Model NO.: JSX-1
- Automatic Grade: Automatic
- Filling Valve Head: Single-Head
- Dosing Device: Capacity Cup
- Packaging Container Lifting Structure: Pneumatic Lifting
- Packaging: Bottle
- Trademark: Jerry
- Origin: China
- Type: Volumetric Filling Machine
- Material Type: Liquid
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Atmospheric Pressure
- Structure: Linear
- Court Filling Machine: Anti Crrosive Filling Machine
- Transport Package: Wooden Box
- HS Code: 8422303090

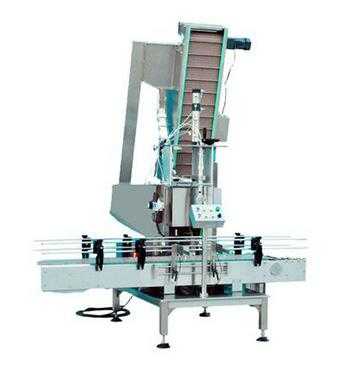

Product ShortDesc: JSX-1 Single-head Capping Machine is making up with cap unscrambling structure, capping structure, conveying part and control system. This capping machine has the feature of simple structure and easy adjustment which is suitable for capping of large drums.
1.Product Details
JSX-1 Single-head Capping Machine is making up with cap unscrambling structure, capping structure, conveying part and control system. This capping machine has the feature of simple structure and easy adjustment which is suitable for capping of large drums.
2.Features
2.1 The cap elevator can reject the opposite caps while conveying the caps.
2.2 It uses the method of fetching first and then capping which make sure the stability of capping. Pneumatic motor driven capping and speed can be adjusted and do no harm to the lids.
2.3 As inside tank installed photo electricity, the cap elevator starts automatically when the caps are not enough in the tank which make sure the supply of caps.
2.4 Auto drum feed in, auto capping and auto drum comes out.
3.Main Technology Parameter
3.1 Capacity: ≤900 bottles/hour
3.2 Applicable Bottle Type: Width≤350mm, Height 100-500mm
3.3 Cap Specification: Φ35-75mm
3.4 Air Pressure: 0.5~0.7 MPA
3.5 Power Source: ~220V, 50HZ
3.6 Power: 1KW
3.7 Weight: 330Kg
3.8 External Dimension: 1500×2300×1800mm(L×W×H)
