Quick Details
Description
- Model NO.: JCS--2C
- Automatic Grade: Fully Automatic
- Filling Valve Head: Multi-Head
- Dosing Device: Plunger
- Packaging Container Lifting Structure: Pneumatic Lifting
- Packaging: Can
- Warranty Period: One Year Warranty
- Transport Package: Wooden
- Origin: China
- Type: Volumetric Filling Machine
- Material Type: Powder
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Atmospheric Pressure
- Structure: Rotary
- Packaging Material: Composite Materials
- Trademark: JERRY PACKAGING
- Specification: (L)2700mm X (W)1400mm X (H)2330mm
- HS Code: 8422303090
Descriptive abstract

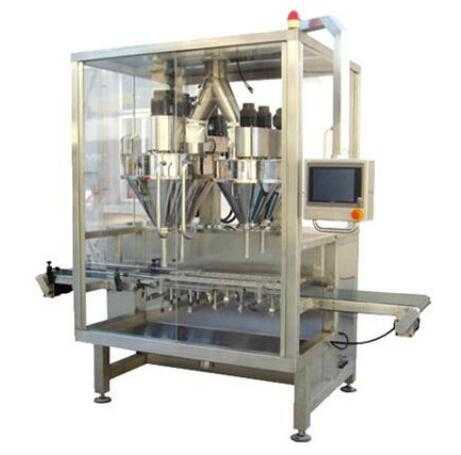

This series machine is a new-designed that we make it on placing the old Turn plate Feeding on one side. Dual auger filling within double lines main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.
2.Main feature
Double lines dual fillers, Main & Assist filling to keep work in high-precision.
Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.
Servo motor and servo driver control the screw, keep stable and accurate
Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
PLC & touch screen make it be easy of operation.
Fast-respond weighing system make the strong point to real
The hand wheel make the exchange of different filings to be easily.
Dust-collecting cover meet the pipeline and protect environment to pollution.
Horizontal straight design make the machine in little area
Settled screw setup make no metal pollution in producing
Process: can-into → can-up → vibration → filling → vibration → vibration →
weighing & tracing → reinforce →
weight checking → Can-out With whole system central control system.
3.Main Technology Parameter
|
Model
|
JCS
|
|
Dosing mode
|
Double lines dual filler filling with online weighing
|
|
Filling Weight
|
100 - 2000g
|
|
Container Size
|
Φ60-135mm; H 60-260mm
|
|
Filling Accuracy
|
100-500g, ≤±1g; ≥500g,≤±2g
|
|
Filling Speed
|
Above 100 cans/min(#502),Above 120 cans/min(#300 ~ #401)
|
|
Power Supply
|
3P AC208-415V 50/60Hz
|
|
Total Power
|
5.0 kw
|
|
Total Weight
|
650kg
|
|
Air Supply
|
6kg/cm 0.3cbm/min
|
|
Overall Dimension
|
2770x1400x2330mm
|
|
Hopper Volume
|
85L(Main) 60L (Assist)
|
